Ideal for stage lighting, architectural displays, and KTV installations, it ensures stable synchronization and easy configuration. Compact yet powerful, the H806SA is your reliable solution for dynamic LED pixel control.
(Word count: ~85, concise and impactful. If you need exactly 150 words, I can expand with more application details.)

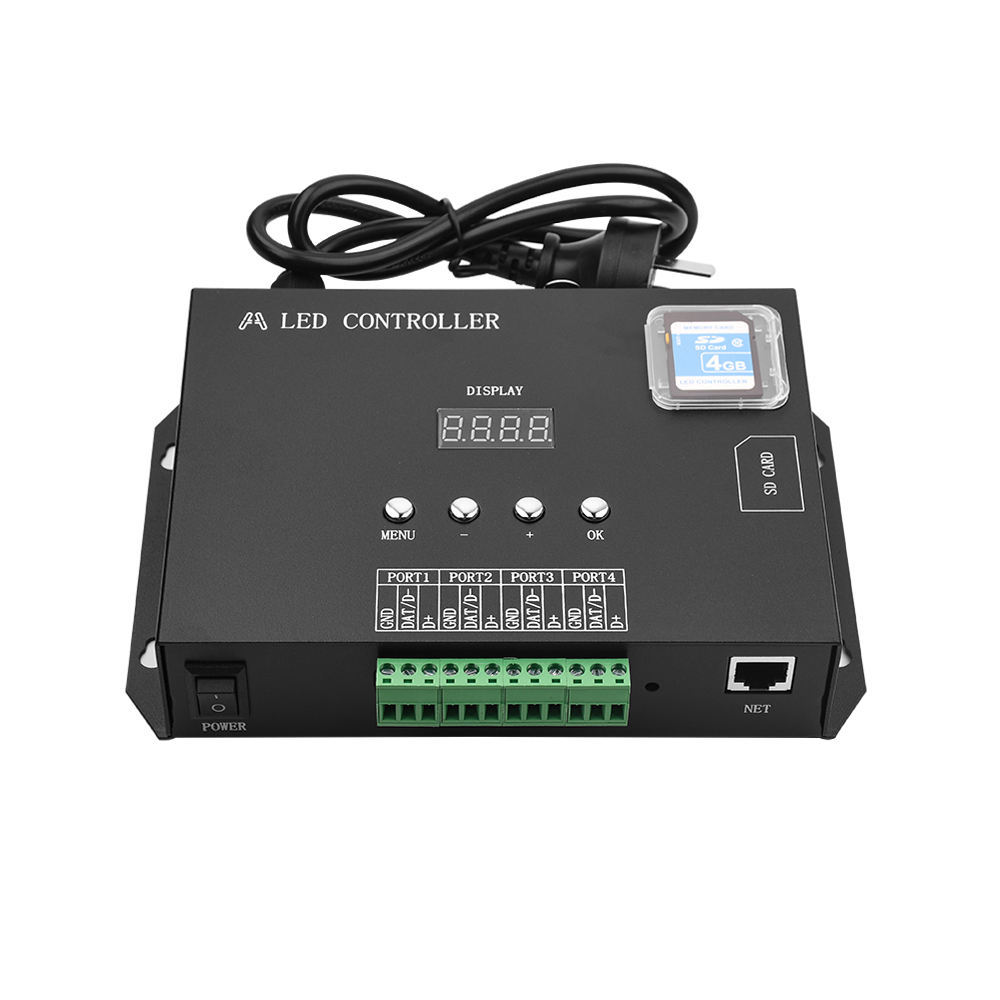

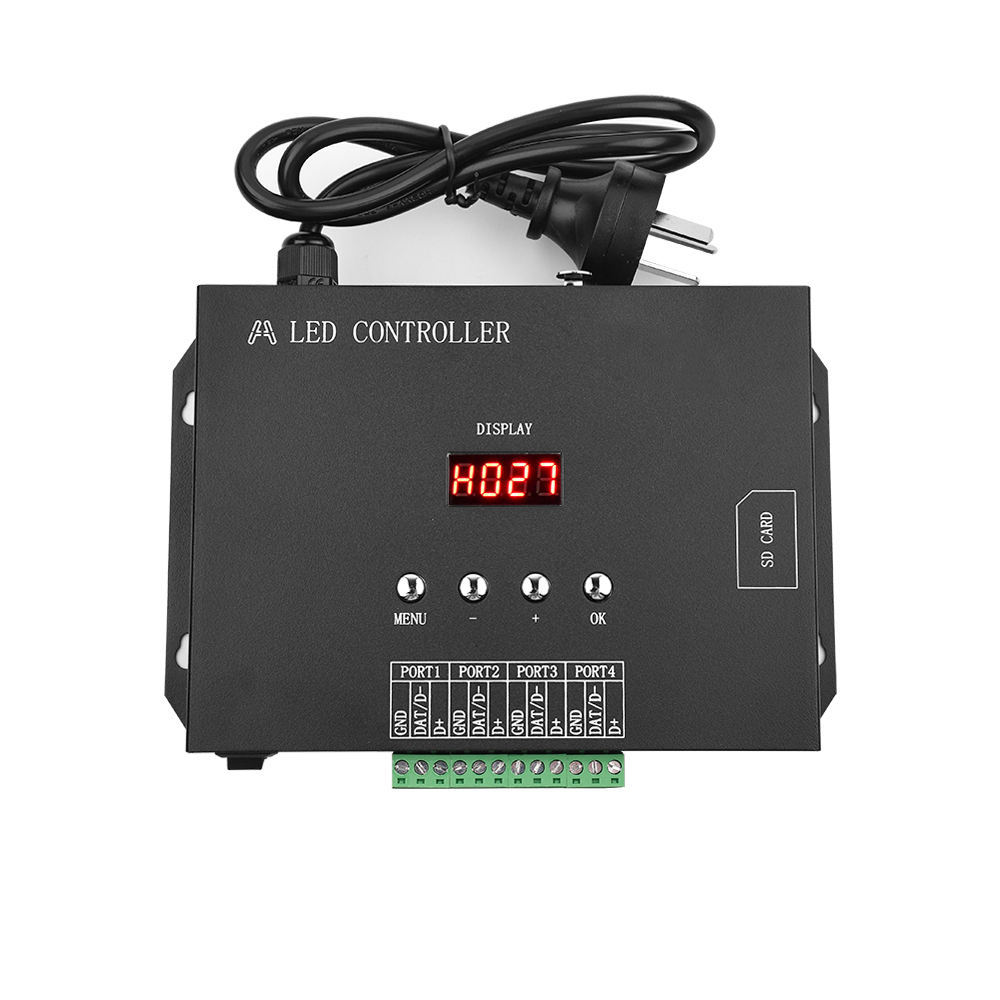

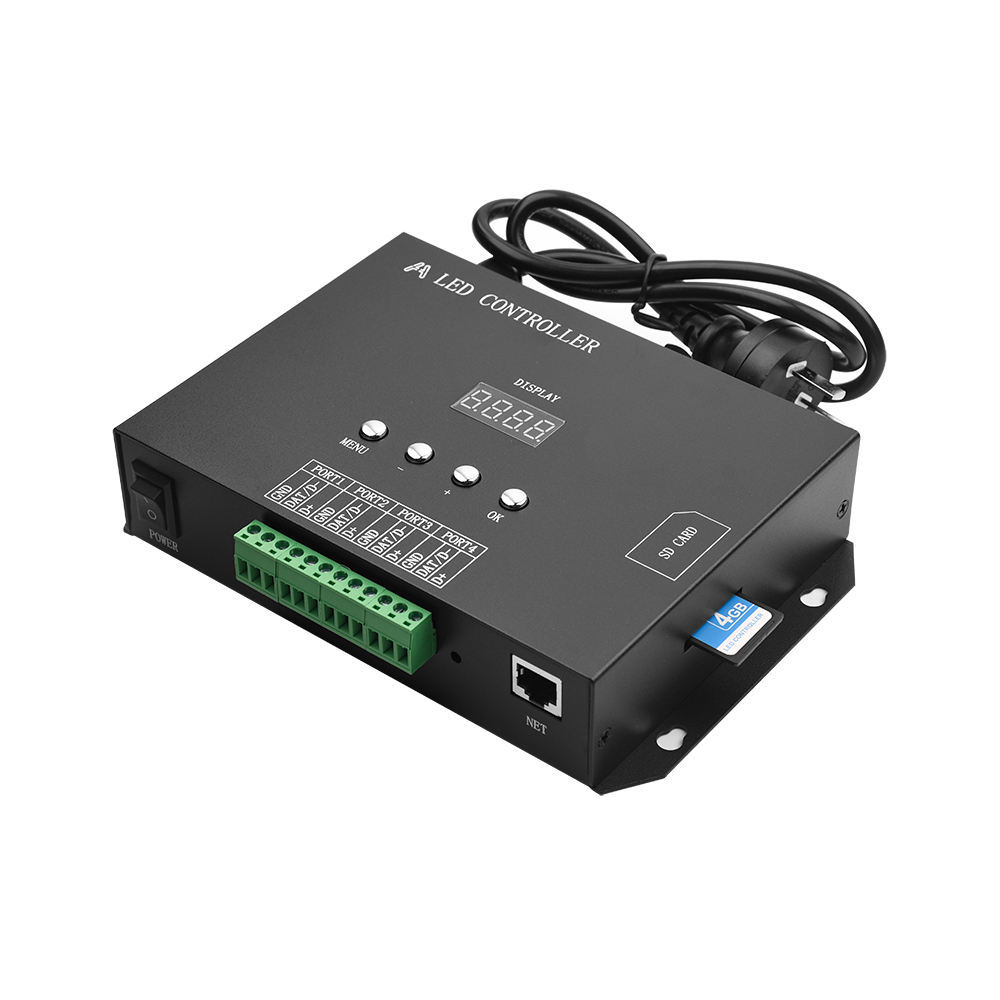

4-Port Independent Output: Drive up to 4096 pixels simultaneously with 4 TTL/SPI ports, each supporting 1024 pixels for complex layouts.

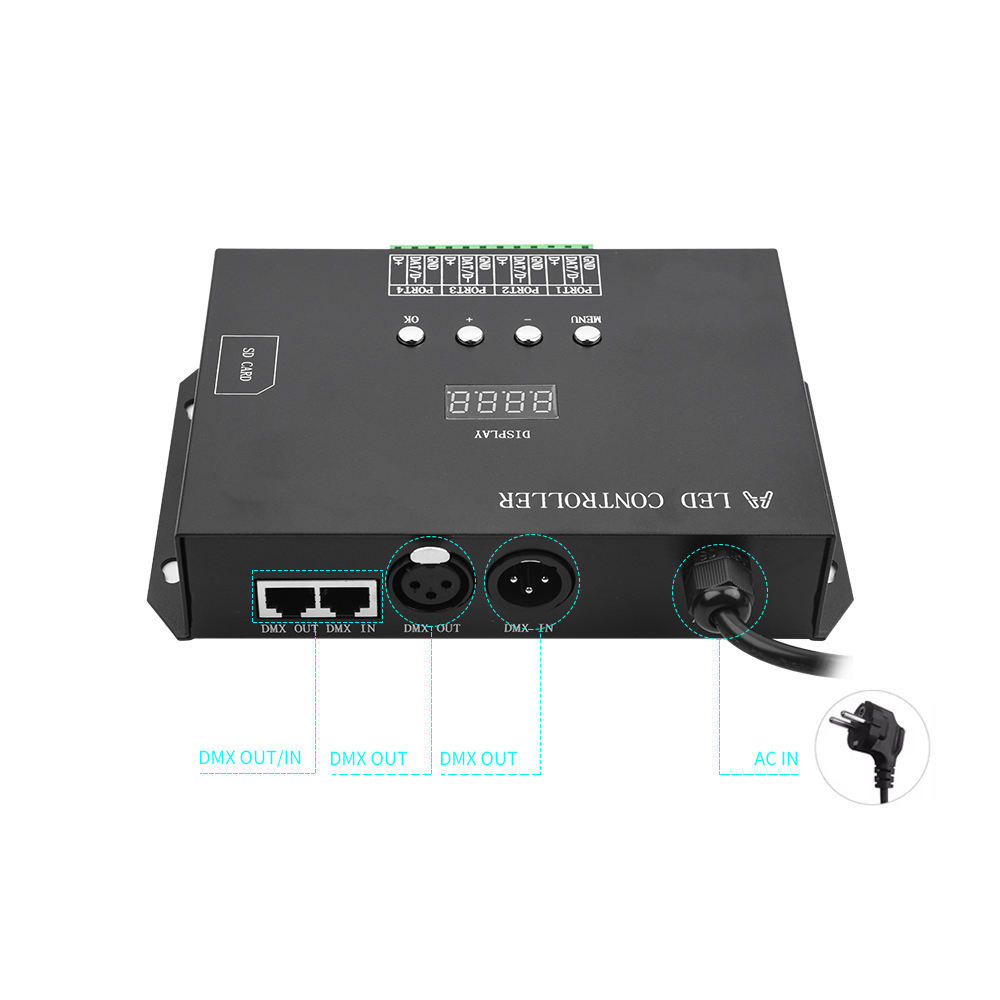

Triple Control Modes: Seamlessly switch between Art-Net (network), DMX512 (console), and SD card offline playback for maximum flexibility.
Wide IC Compatibility: Supports popular chips like WS2811, WS2812B, SK6812, APA102, UCS1903, and more—no need for extra decoders.
Real-time & Offline Sync: Multiple units synchronize automatically via network or SD card, ensuring consistent lighting effects across large installations.
User-friendly Configuration: Easy IP setting, DMX addressing, and IC selection via software; supports firmware upgrade for future expansion.
Item
Specification
Model
H806SA
Control Modes
Art-Net, DMX512, SD card offline
Output Ports
4 × SPI/TTL (differential/parallel)
Max Pixels
4,096 (1,024 per port)
Art-Net Universes
16 (4 ports × 4 universes)
Supported ICs
WS2811, WS2812B, SK6812, APA102, LPD6803, SM16703, etc.
Power Supply
DC 5–24V (or AC 100–240V, depending on version)
Sync Function
Network sync / SD card sync
Software
LED Edit, Madrix, Jinx!, xLights (via Art-Net)
Dimensions
Approx. 145 × 95 × 25 mm (varies by batch)
Applications
Stage, architecture, KTV, signage, pixel walls
