Operating on a robust 24V DC system, it ensures safe, low-voltage installation with minimal voltage drop. Each fixture features an individual DMX512 address, allowing precise control over every beam to create stunning visual effects like flowing water, starry skies, and dynamic chasing patterns. With selectable beam angles (15°/24°/38°) and a sleek, low-glare housing, it is the ultimate lighting solution for designers seeking both functional illumination and breathtaking visual impact.
True RGBW 4-in-1 Color Mixing: Features an independent White chip alongside RGB. This guarantees high-quality, pure white light for formal dining and meetings, eliminating the harsh purplish tint common in standard RGB lights.
Individual Pixel-Mapping Control: Fully addressable via DMX512 protocol. Each spotlight acts as an independent pixel, enabling complex, theater-grade visual effects such as fluid color washes, precise chasing sequences, and custom logo projections.
Safe & Stable 24V DC Operation: Designed for 24V low voltage, significantly reducing power consumption and heat output. It ensures safer operation in ceiling cavities and minimizes voltage drop over long cable runs.
Professional Optical Performance: Available in multiple beam angles (15°, 24°, 38°) to suit various ceiling heights and coverage areas. High CRI (>90) ensures true color rendering for both decor and human skin tones.
Architectural-Grade Integration: Built with a robust aluminum heat sink and a sleek trim. Supports both recessed (downlight) and surface-mounted installation, blending perfectly into luxury interior designs without visual clutter.

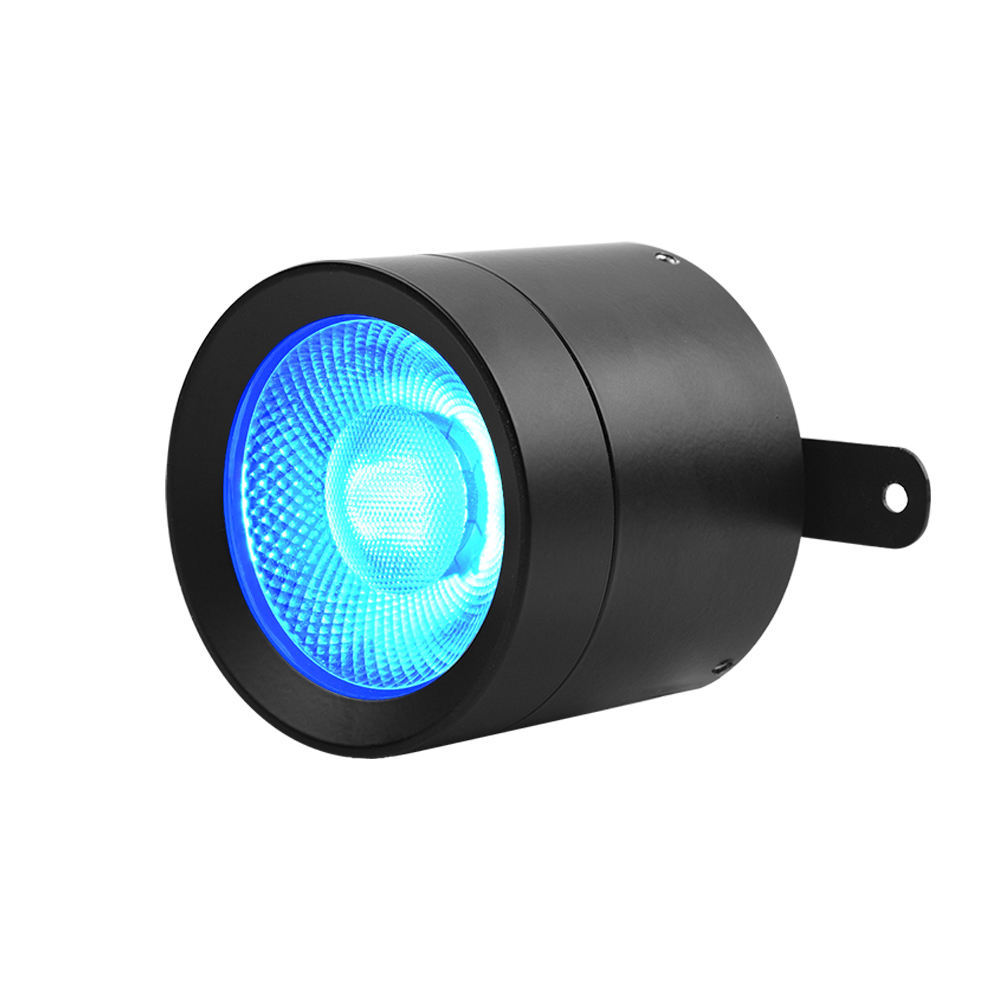

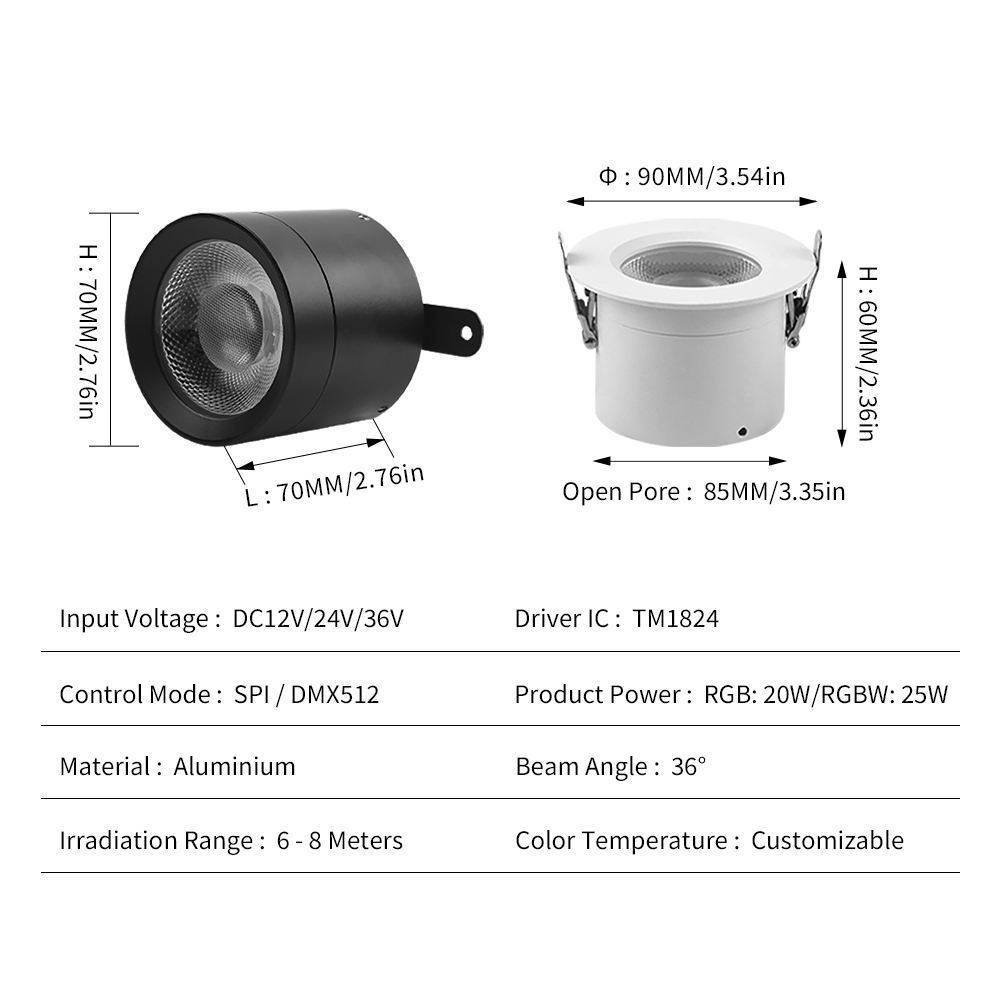

Product Name: 24V RGBW Addressable LED Pixel Spot Light
Model No.: [Insert Model Number]
Input Voltage: DC 24V
Power Consumption: 12W / 20W (Optional)
LED Type: High Brightness RGBW 4-in-1 COB LED
Color Rendering Index (CRI): Ra ≥ 90
Control Protocol: DMX512 (Standard) / SPI (Optional)
DMX Channels: 4 Channels (R, G, B, W)
Pixel Mapping: Individual Addressable (Auto/Manual Addressing)
Beam Angle: 15° / 24° / 38° (Selectable)
Housing Material: Die-cast Aluminum (White/Black finish)

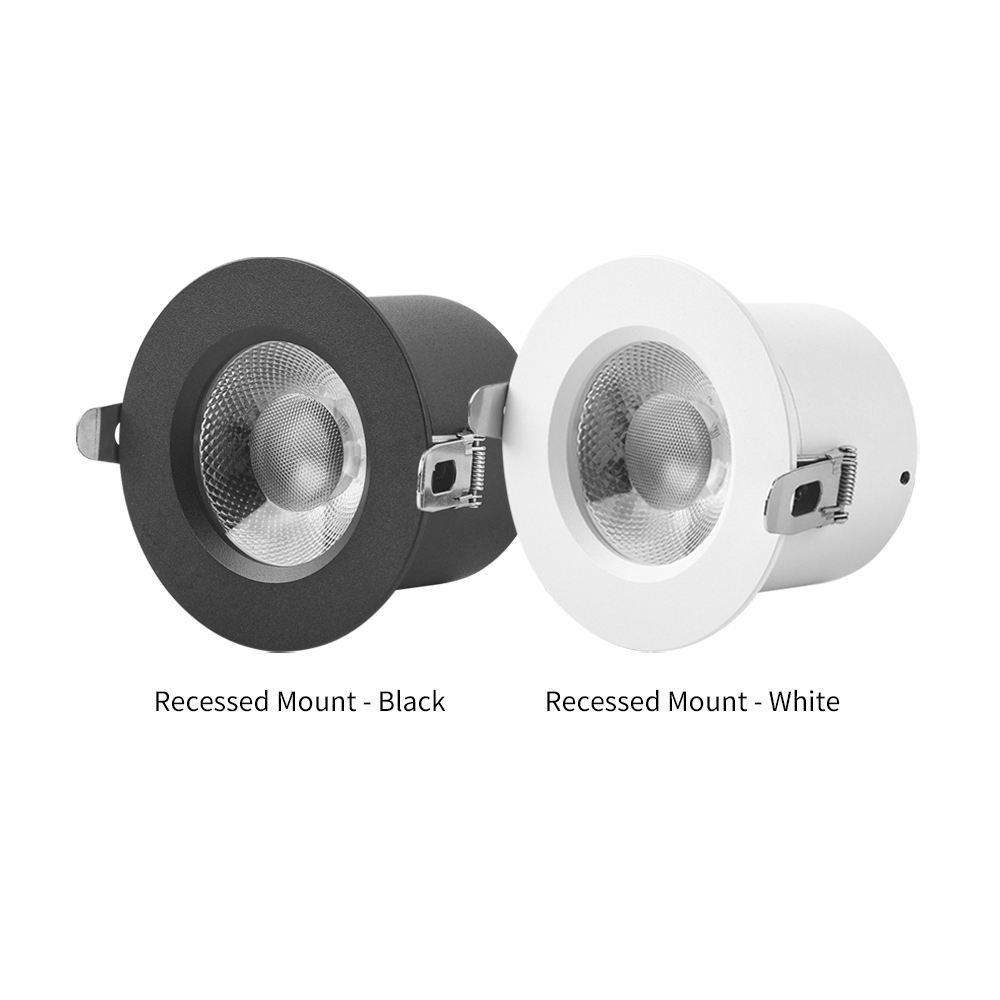

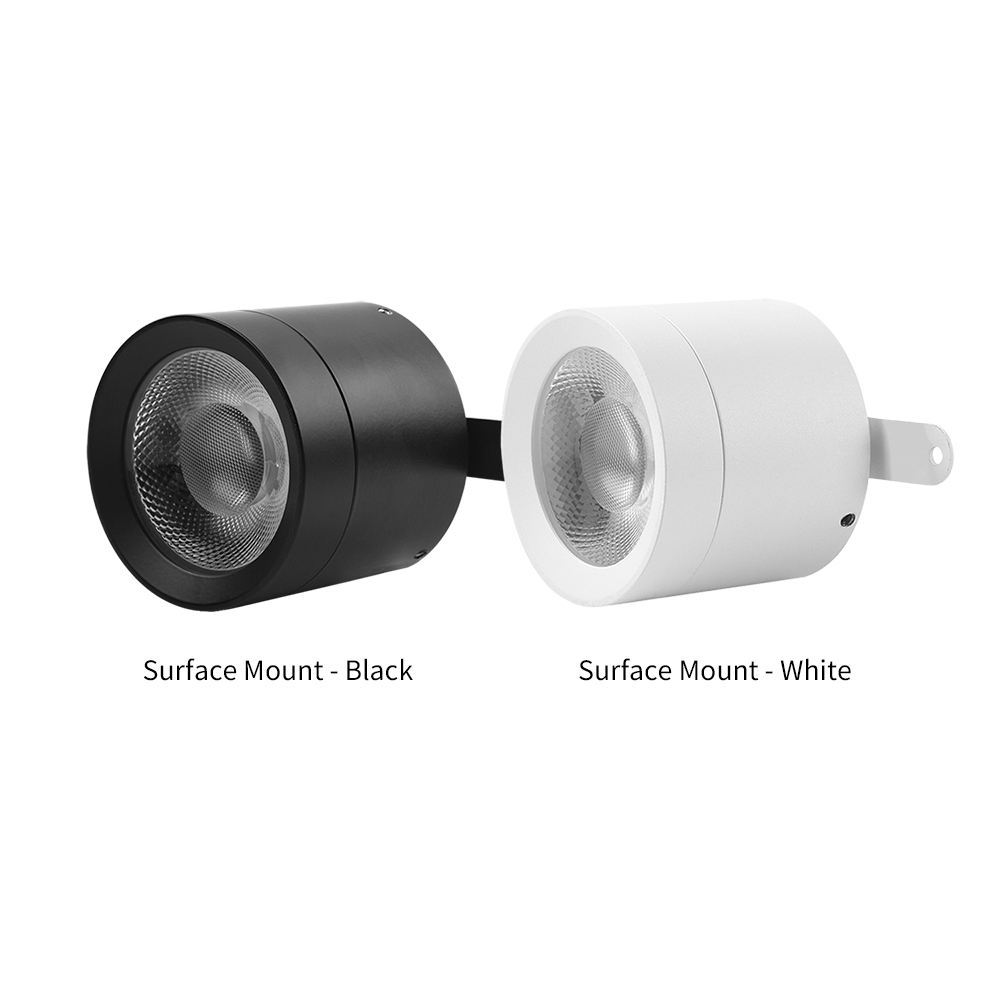

Installation: Recessed / Surface Mounted
Operating Temperature: -20°C to 45°C
IP Rating: IP20 (Indoor Use)
Dimming: 0-100% Smooth Flicker-free Dimming
Applications: Hotel Banquet Halls, Wedding Venues, Stage Ceilings, Luxury Lobbies.
