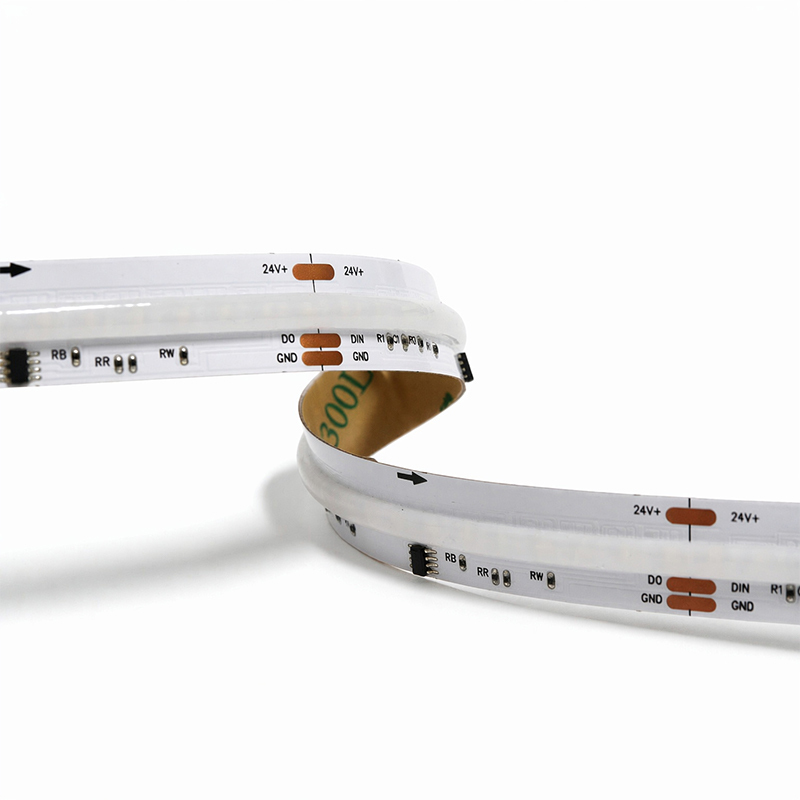

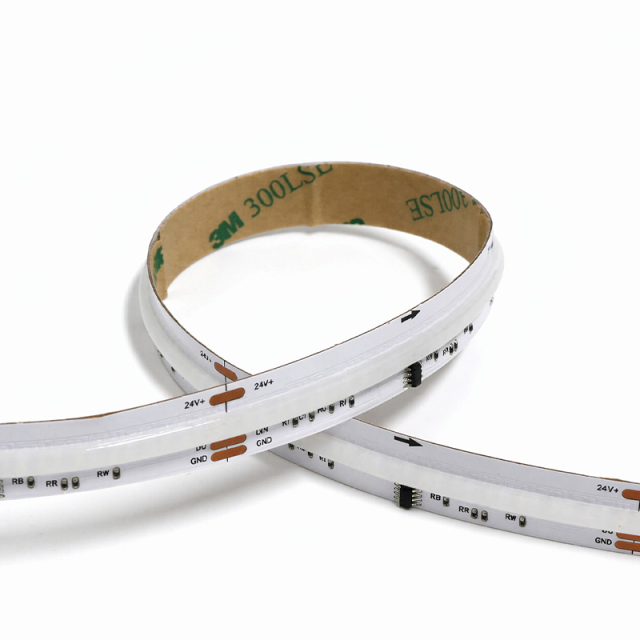

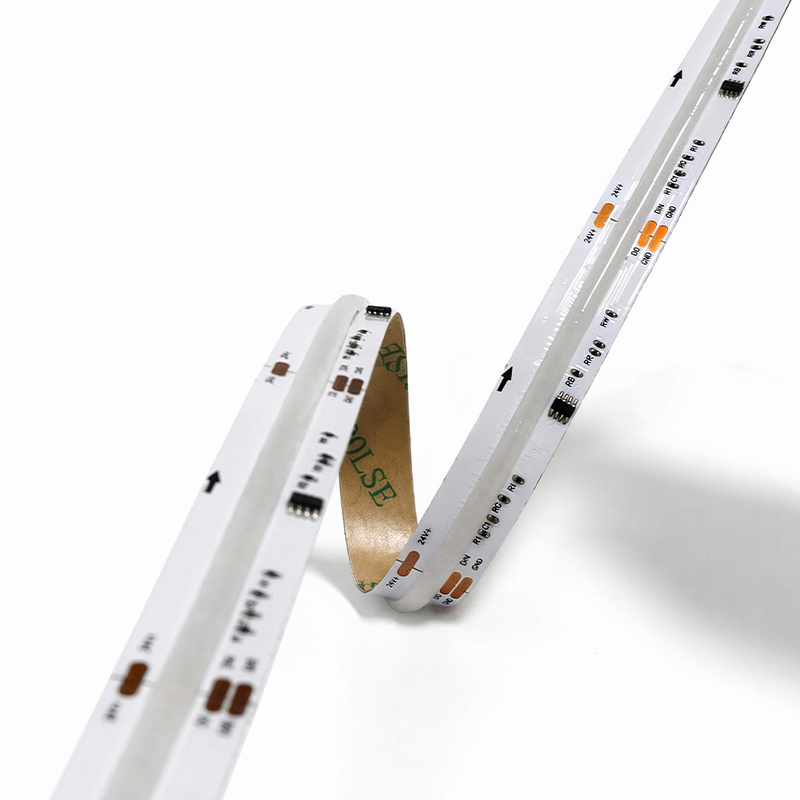

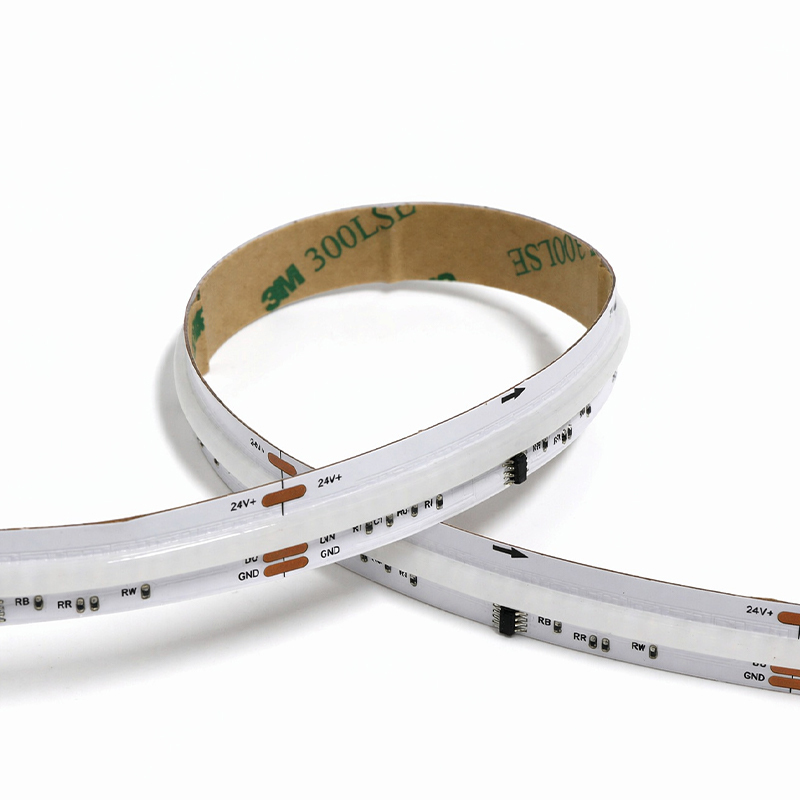

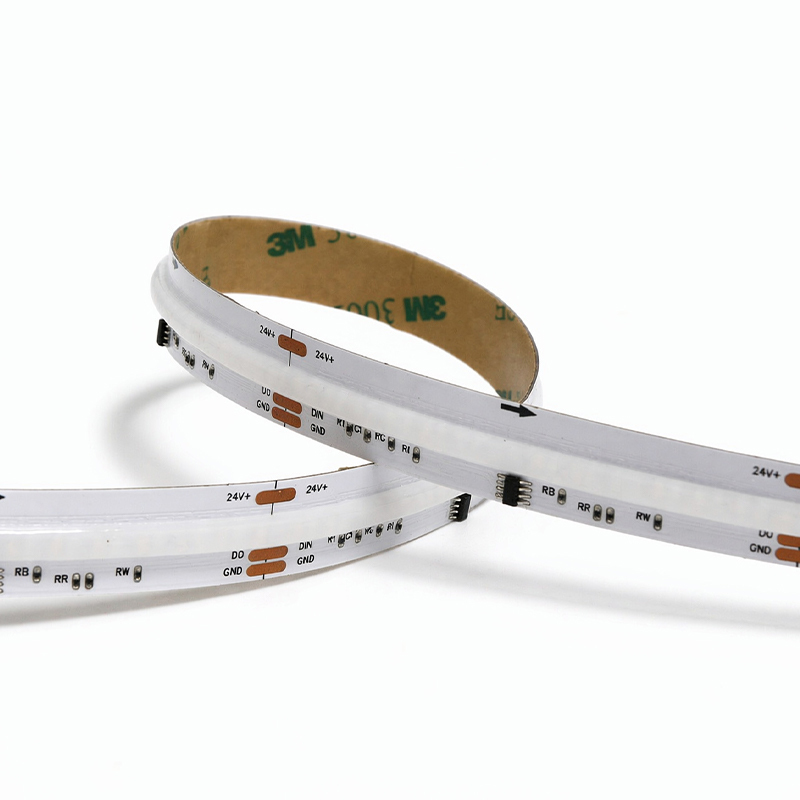

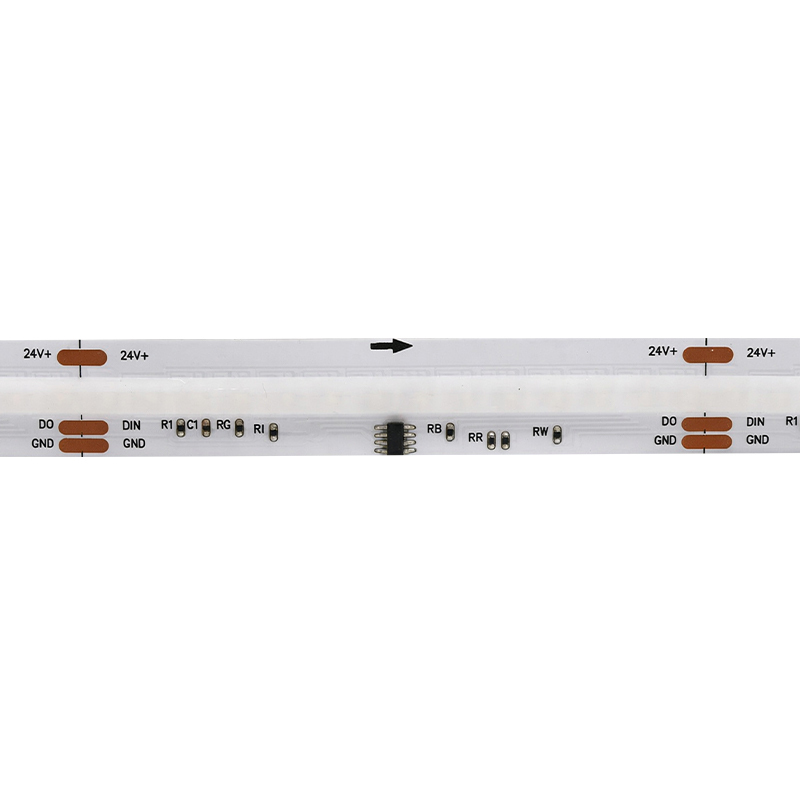

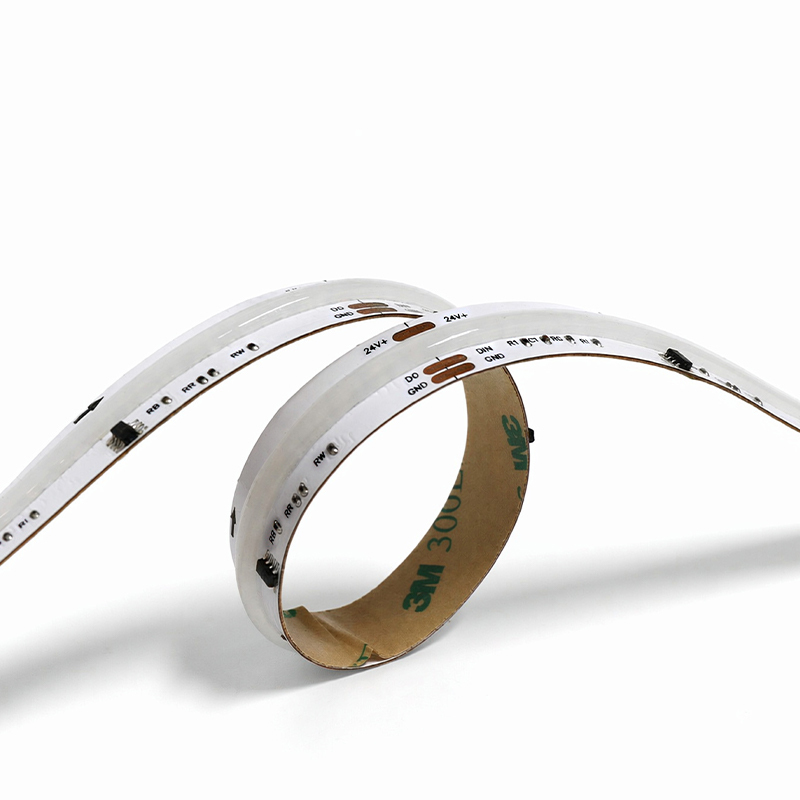

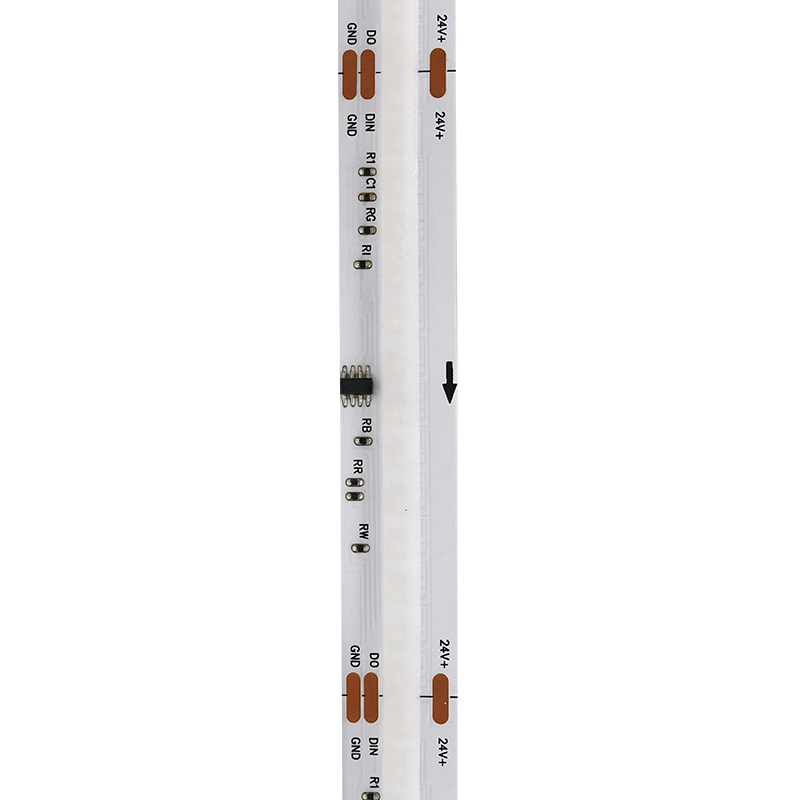

Dotless, dense, and RGBW-rich. This DC24V WS2814 COB strip packs 896 COB light sources per meter into a 12mm flexible ribbon, producing a continuous neon-like glow with no visible LED dots. The built-in WS2814 IC drives Red/Green/Blue plus a dedicated White channel, so you get vivid rainbow effects and clean tunable white from one tape. 24V power reduces current and voltage drop versus 5V/12V COB strips, making long architectural runs far more stable. Use WLED, K-1000C, SPI→DMX decoder, or Art-Net to run flowing color, breathing white, brand gradients, and stage washes. Ideal for ceiling coves, hotel façades, bar fronts, window frames, and premium signage where both color and white quality matter.
896 COB LEDs/m, Dotless – Continuous light line; looks like neon, no hotspots/LED dots under diffuser.
WS2814 RGBW – 4-channel control (R/G/B/W); true white + full color, no purple-wash white.
DC24V COB System – Lower current, less voltage drop, longer runs than 5V/12V COB tape.
12mm Soft Ribbon – Bendable for curves, letters, coves; IP20/IP65/IP67 optional, cut at IC group.
Pro Control Ready – WLED / ESP32 / K-1000C / T-1000C / Arduino / SPI→DMX / Art-Net / Madrix.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Addressable RGBW COB LED strip |
|
Light Source |
COB packaged RGBW chips |
|
LED Density |
896 LEDs/m |
|
IC Type |
WS2814 (built-in, 4-channel R/G/B/W) |
|
Voltage |
DC 24V |
|
Pixel Grouping |
Multi-LED per IC (e.g. 8/14/16 LEDs/segment — confirm with factory) |
|
Power |
~14–20 W/m (COB bin dependent) |
|
PCB Width |
12 mm |
|
Cut Unit |
One IC group (not 1 LED; e.g. 1000/896 ≈ 1.12mm? no — group length per datasheet) |
|
Color |
RGB + 2700K/3000K/4000K/6000K White |
|
Gray Scale |
256/chan, 24-bit+white |
|
Beam |
180° soft COB glow |
|
Roll |
5 m/reel |
|
Controllers |
WLED, ESP32, K-1000C, T-1000C, Arduino, SPI→DMX, Art-Net |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
50,000 hrs |
