The 3-wire CCT design blends 3000K warm and 6000K cool white for infinite color temperature control—from cozy patio ambiance to crisp task lighting. Operating on safe 24V DC at 10W+10W per meter, it runs cool with minimal voltage drop even in longer runs. The 8mm width fits discreetly into narrow outdoor profiles, stair nosings, and facade grooves. With CRI ≥90, colors render naturally for architectural and landscape applications. Flexible yet durable, it bends to curves without compromising the waterproof seal. Professional outdoor lighting made simple—just mount, connect, and glow.
💧 True IP67 Solid Silicone Extrusion: One-piece seamless silicone jacket—no glue joints, no entry points. Dust-tight, waterproof to 1m immersion, UV-stable, and anti-yellowing for long-term outdoor use.
🌈 Tunable 3000K–6000K White: Blend warm and cool white channels for infinite CCT control—perfect for transitioning from evening ambiance to daytime task lighting with one strip.
✨ Dot-Free COB Illumination: 560 LEDs/m in COB packaging eliminate visible dots and hotspots, creating a smooth, continuous light line even at close viewing distance.
⚡ 24V Safe & Stable: DC 24V operation reduces current and voltage drop, enabling longer runs with consistent brightness—ideal for outdoor architectural installations.
📏 8mm Width for Tight Spaces: Slim 8mm PCB fits narrow outdoor channels, stair edges, and facade gaps where standard IP67 strips are too wide.

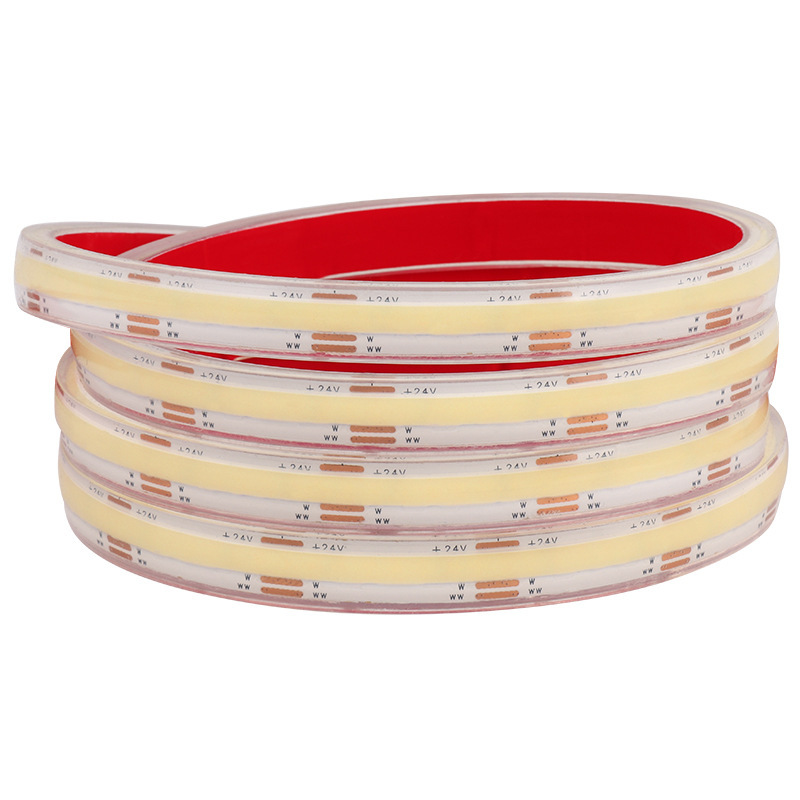

Product Specification Sheet — 8mm COB CCT Tunable IP67 Solid Silicone LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
8mm COB Dual CCT IP67 Solid Silicone LED Strip |
|
LED Technology |
COB (Chip-on-Board), 2-color in one chip |
|
|
LED Density |
560 LEDs/m (280 Warm White + 280 Cool White) |
|
|
Electrical |
Input Voltage |
DC 24V (Constant Voltage) |
|
Power Consumption |
20W/m total (10W Warm White + 10W Cool White) |
|
|
Current |
~0.83A/m @ 24V |
|
|
Control Type |
3-wire CCT (V+ / WW+ / CW+), non-addressable |
|
|
Cuttable Unit |
Every 62.5mm (approx. every 35 chips) |
|
|
Optical |
Color Temperature |
Tunable 3000K–6000K (blend of WW + CW) |
|
CRI (Ra) |
≥90 (High Color Rendering) |
|
|
Luminous Efficacy |
90–100 lm/W |
|
|
Beam Angle |
180° (top emission, uniform) |
|
|
Feature |
Dot-free, no dark spots, soft uniform glow |
|
|
Physical |

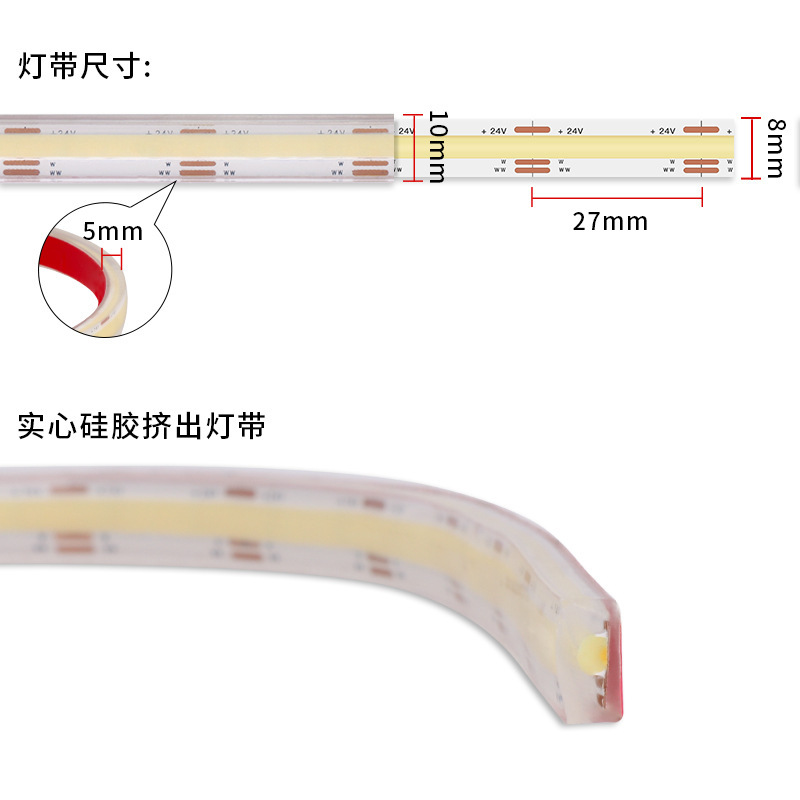

PCB Width |
8mm |
|
Overall Width |
~10mm (with silicone jacket) |
|
|
Overall Height |
~3.5mm (flat top profile) |
|
|
Roll Length |
5m / roll (custom lengths available) |
|
|
Min. Bending Radius |
≥ 20mm (side bend) |
|
|
Waterproof |
IP Rating |
IP67 (solid silicone extrusion, seamless) |
|
Max Immersion |
≤1m depth |
|
|
UV Resistance |
Yes, anti-yellowing (outdoor grade) |
|
|
Salt Spray |
Pass (coastal rated) |
|
|
Environment |
Operating Temp. |
-40℃ to +60℃ |
|
Lifespan |
30,000–50,000 hours |
|
|
Installation |
Mounting |
3M VHB tape on back + stainless steel clips (included) |
|
Bending |
Side bend only (not face-bend) |
|
|
End Sealing |
Pre-sealed; field cuts require silicone sealant + end cap |
|
|
Controller |
Compatibility |
CCT dimmer, PWM controller, 0-10V, DALI, smart home module |
|
Application |
Facade, stair nosing, handrail, landscape edge, eaves, soffit, patio, garden, bridge, marine dock, outdoor signage |
