DC24V at 14W/m keeps current low for stable 5–10m runs, while the 10mm flexible PCB hides in shelves, coves, TV backboards, gaming desks, retail displays and signage letters. Cut every 100mm to match pixel boundaries, stick with 3M tape or mount in a shallow profile, and pair with any SPI/1903 controller (WLED, SP-series, T-series, Madrix-via-SPI). From living-room ambiance to commercial window drama, it’s the sweet spot between cheap SMD RGB tape and expensive 840-LED pixel COB.

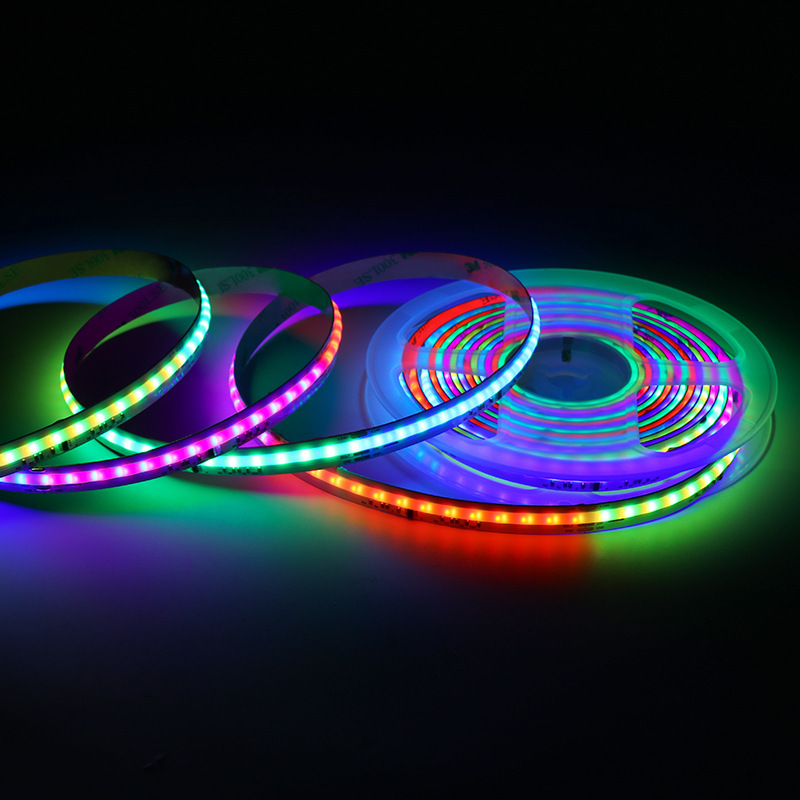

🌈 COB RGBIC, No Dots: 420 RGB COB chips/m create one smooth color line—chase and gradient effects look silky, no visible LED squares like old 5050 strips.
🏃 1903-Class Pixel Control: TM1903 / UCS1903 / WS2811-compatible ICs enable running water, marquee, wave, breathe, music sync—10cm pixel unit, cut on marked boundaries.
🔌 24V 14W/m Stable: Lower current than 5V/12V pixel tape; fewer power injections, longer safe runs for bars, shops and home studios.

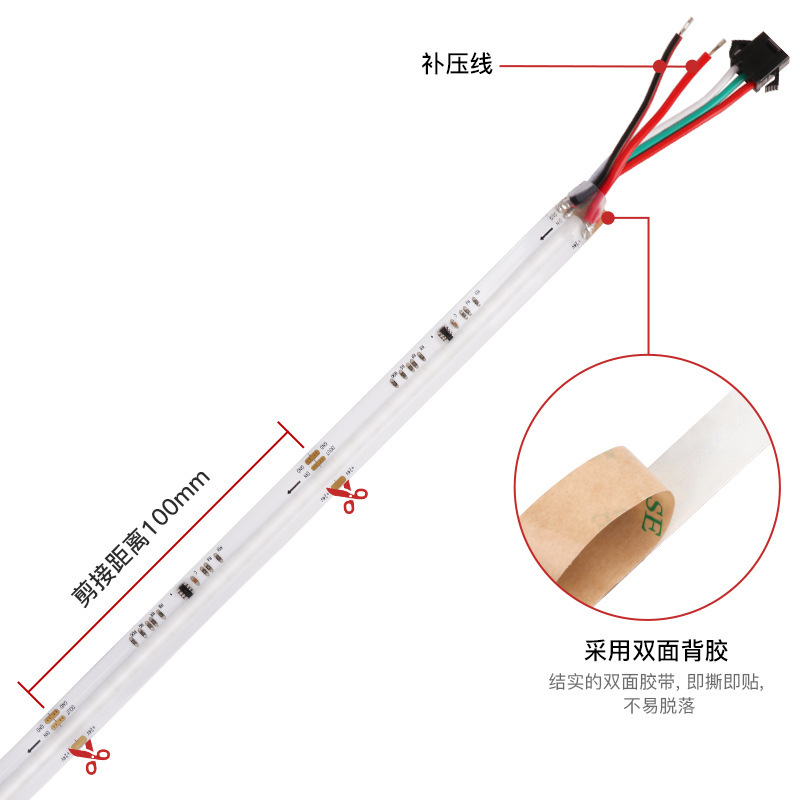

📏 10mm Slim & Cuttable: Fits 12mm aluminum profiles; 100mm cut unit; 3M backing + flexible FPC for curves, letters and furniture edges.
🎛️ Controller-Friendly: Works with 1903/WS2811 SPI controllers, WLED/ESP32, SP530E, T-1000S, K-1000C; IP20 / IP65 / IP67 options for indoor or weather-protected installs.
Product Specification Sheet — 10mm COB RGB Addressable 1903 Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
10mm COB RGBIC / Digital RGB COB Strip |
|
LED Tech |
COB RGB (R+G+B in chip row) |
|
|
Density |
420 LEDs/m |
|
|
Control |
IC |
TM1903 / UCS1903 / WS2811-compatible (SPI) |
|
Pixel Unit |
100mm (10 pixels/m typical for 420/m @ 24V) |
|
|
Effects |
Chase, running water, wave, gradient, breathe, music sync |
|
|
Electrical |
Voltage |
DC 24V Constant Voltage |
|
Power |
14W/m (70W / 5m) |
|
|
Current |
~0.58A/m |
|
|
Optical |
Color |
RGB, 16M colors via controller |
|
CRI |
N/A for RGB; white-mix CRI varies |
|
|
Beam |
180° wide |
|
|
Lumen |
~400–500 lm/m (full white mix) |
|
|
Mechanical |
PCB |
10mm wide, 2oz/3oz copper FPC |
|
Cut Unit |
100mm |
|
|
Roll |
5m / 10m |
|
|
Adhesive |
3M 300LSE |
|
|
Control I/O |
Wiring |

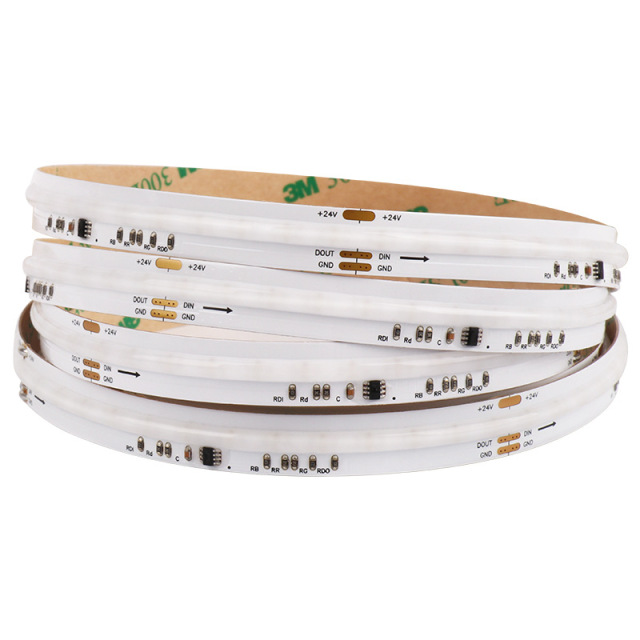

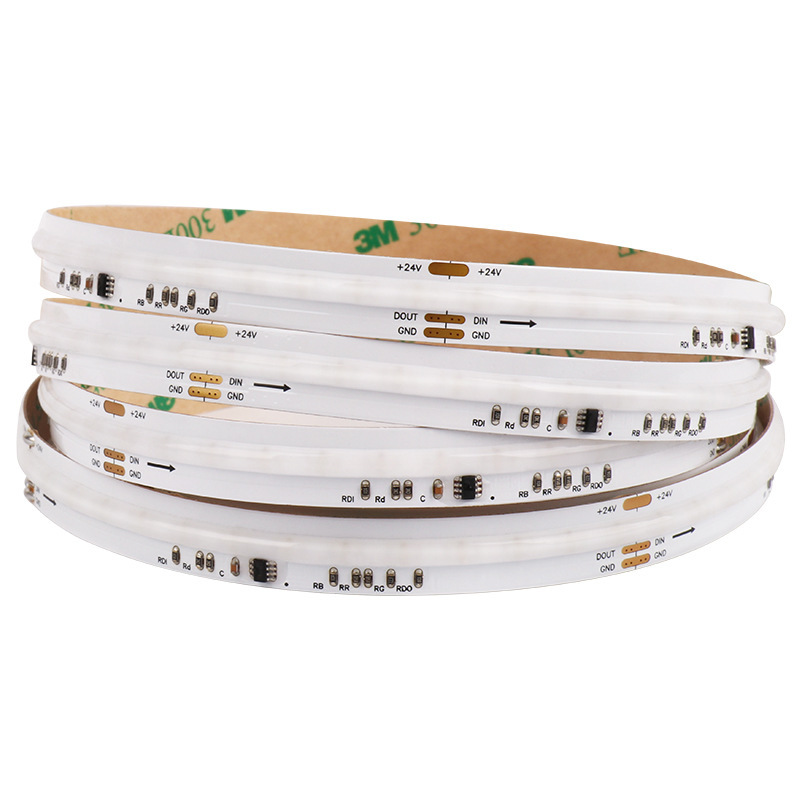

3-wire: 24V / DAT / GND (some builds DAT+CLK) |
|
Controllers |
1903 / WS2811 SPI, WLED, SP530E, T-1000S, K-1000C |
|
|
Environment |
IP |
IP20 standard; IP65 / IP67 optional |
|
Temp |
-20℃ ~ +50℃ |
|
|
Life |
30,000–50,000h |
|
|
Application |
TV backlight, gaming desk, shelf, bar, club, retail window, signage letter, coves, architectural accent |
