The 3-wire CCT design lets you blend 3000K warm and 6000K cool white for infinite color temperature control—from cozy amber to crisp daylight. Choose 5V for USB-powered DIY projects or 12V for longer runs with less current. At 5W+5W per meter, it stays cool and energy-efficient even in enclosed spaces. The high CRI ≥90 ensures true-to-life colors for displays, artwork, and interiors. With strong 3M self-adhesive backing, installation takes seconds—just peel, stick, and power on. Perfect for bookshelves, display cases, under-cabinet, picture frames, and any space where every millimeter counts.
📏 Ultra-Narrow 2.7mm Width: The slimmest COB strip available—fits into gaps as thin as 3mm, perfect for picture frames, glass shelves, narrow furniture joints, and micro-architecture.

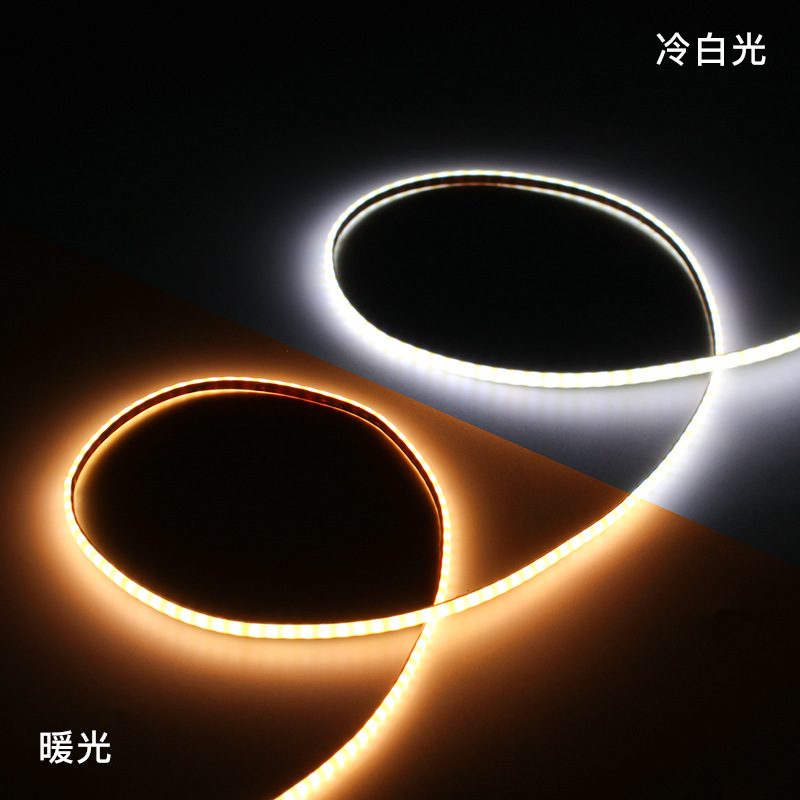

🌈 3-Color Tunable White: Blend 3000K warm and 6000K cool white channels for infinite CCT control (2700K–6500K), adapting from relaxing to task lighting with one strip.
✨ Dot-Free COB Illumination: 576 LEDs/m in COB packaging eliminate visible dots and hotspots, creating a smooth, continuous light sheet even at close viewing distance.
🔌 Dual Voltage Flexibility: Available in 5V (USB/portable/battery) and 12V (longer runs/lower current) to match any power setup—from phone power bank to DC adapter.

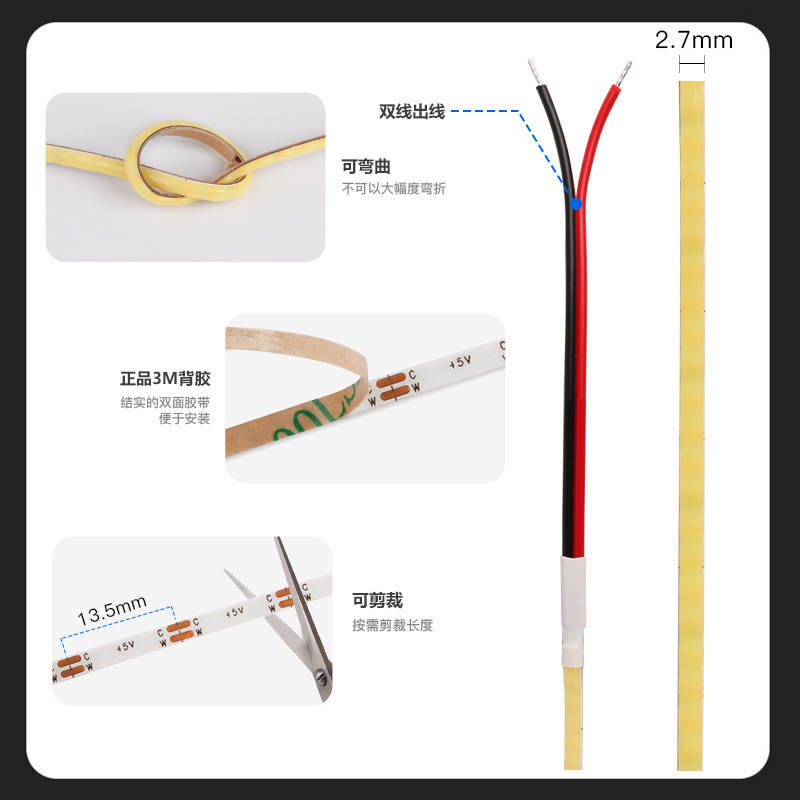

🔗 Self-Adhesive & Cuttable: Premium 3M backing for instant peel-and-stick install; cuttable every 41.67mm for custom lengths. Slim FPCB bends smoothly around curves and corners.
Product Specification Sheet — 2.7mm Ultra-Narrow COB CCT LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
2.7mm Ultra-Narrow COB Dual CCT LED Strip |
|
LED Technology |
COB (Chip-on-Board), 2-color in one chip |
|
|
LED Density |
576 LEDs/m (288 Warm White + 288 Cool White) |
|
|
Electrical |
Input Voltage |
DC 5V or DC 12V (optional at order) |
|
Power Consumption |
10W/m total (5W Warm White + 5W Cool White) |
|
|
Current |
~2.0A/m @ 5V / ~0.83A/m @ 12V |
|
|
Control Type |
3-wire CCT (V+ / WW+ / CW+), non-addressable |
|
|
Cuttable Unit |
Every 41.67mm (approx. every 24 chips) |
|
|
Optical |
Color Temperature |
Tunable 3000K–6000K (blend of WW + CW) |
|
CRI (Ra) |
≥90 (High Color Rendering) |
|
|
Luminous Efficacy |
90–100 lm/W |
|
|
Beam Angle |
180° (wide, uniform) |
|
|
Feature |
Dot-free, no dark spots, soft uniform glow |
|
|
Physical |
PCB Width |
2.7mm |
|
PCB Color |
White (standard) / Black (optional) |
|
|
Roll Length |
5m / roll (custom lengths available) |
|
|
Thickness |
~0.8mm (without adhesive) |
|
|
Back Adhesive |
3M 9448A / 300LSE double-sided tape |
|
|
Environment |
Operating Temp. |
-20℃ to +45℃ |
|
IP Rating |
IP20 (indoor, non-waterproof; IP65 optional) |
|
|
Lifespan |
30,000–50,000 hours |
|
|
Controller |
Compatibility |
CCT dimmer, PWM controller, 0-10V, TRIAC (with driver), smart home module |
|
Application |
Picture frame, glass shelf, display case, under-cabinet, closet, stair, headboard, mirror, micro-cove, DIY craft |
