Operating on safe 24V DC at 20W/m, it provides high brightness while staying cool and energy-efficient. With CRI ≥95 (optional ≥97), colors appear vivid and true—perfect for art galleries, retail displays, photography studios, and premium interiors. The flicker-free design, when paired with a quality driver, protects eyesight during extended use, making it ideal for reading nooks, bedrooms, and workspaces. The wider 15mm FPCB improves heat dissipation and allows for longer continuous runs with less voltage drop. Flexible enough to bend around curves, it installs easily with 3M VHB backing or narrow aluminum profiles. From warm 2700K to crisp 6000K, this strip transforms any room into a well-lit, inviting space with cinema-grade color quality.

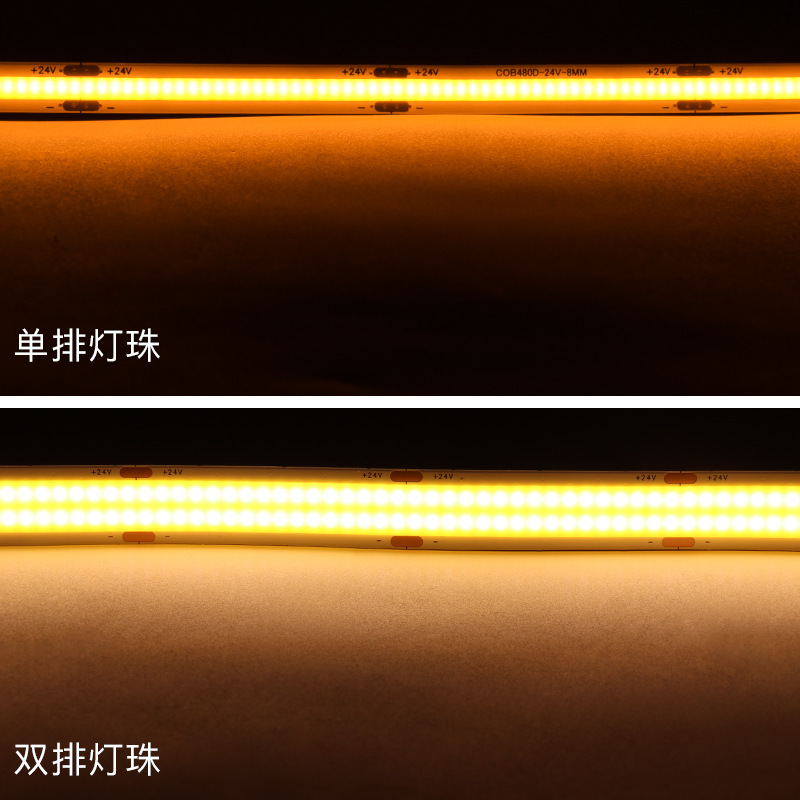

✨ Double Row COB Design: Two parallel rows of COB chips (640 LEDs/m) create a wider 15mm light-emitting surface—double brightness and smoother light than single-row strips.
👁️ High CRI ≥95 & Flicker-Free: Ra ≥95 (optional ≥97) renders colors with museum-grade accuracy; flicker-free drive protects eyes during reading, working, and extended viewing.
💡 High Brightness 20W/m: 20W per meter output delivers strong, uniform illumination for task lighting, display cases, and ambient cove lighting without visible hotspots.
⚡ 24V Stable & Cool: DC 24V operation reduces current and voltage drop, enabling longer runs with consistent brightness; low heat generation extends LED lifespan.

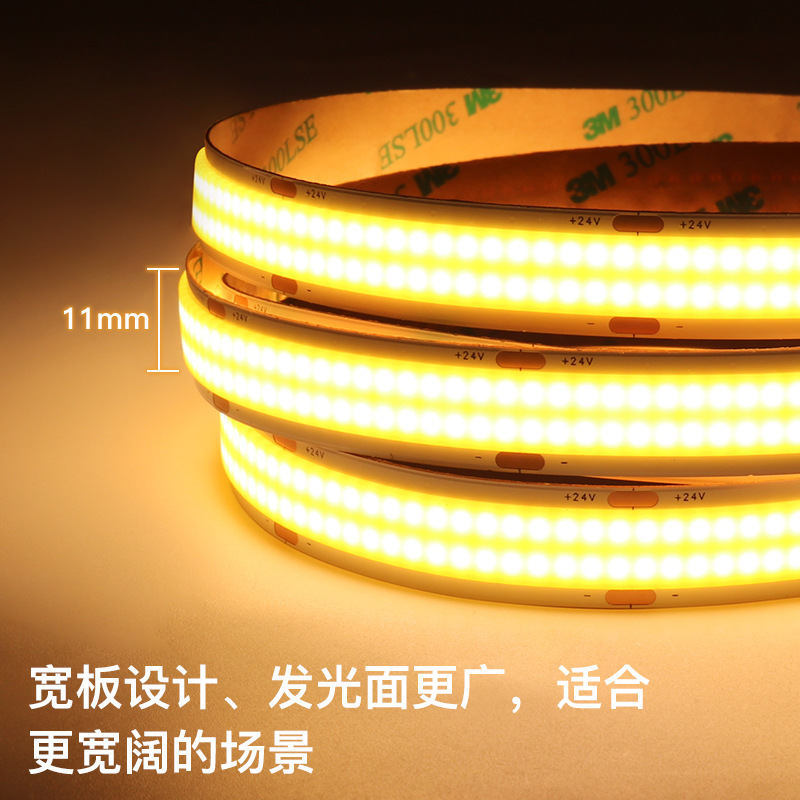

🔧 15mm Wide PCB: Extra width improves copper trace capacity and heat dissipation; fits standard 15mm–20mm aluminum profiles for clean architectural installation.
Product Specification Sheet — 15mm Double Row COB LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
15mm Double Row COB LED Strip Light |
|
LED Technology |
COB (Chip-on-Board), dual parallel rows |
|
|
LED Density |
640 LEDs/m (320 per row × 2 rows) |
|
|
Electrical |
Input Voltage |
DC 24V (Constant Voltage) |
|
Power Consumption |
20W/m (100W / 5m roll) |
|
|
Current |
~0.83A/m @ 24V |
|
|
Drive |
Constant voltage, flicker-free with quality PWM dimmer/driver |
|
|
Cuttable Unit |
Every 50mm (approx. every 32 chips) |
|
|
Optical |
Color Temperature |
2700K / 3000K / 3500K / 4000K / 5000K / 6000K |
|
CRI (Ra) |
≥95 (standard), ≥97 (high-end optional) |
|
|
Luminous Efficacy |
100–120 lm/W |
|
|
Lumen Output |
~2,000–2,400 lm/m |
|
|
Beam Angle |
180° (wide, uniform) |
|
|
Feature |
Dot-free, no dark spots, smooth linear glow |
|
|
Physical |
PCB Width |
15mm |
|
PCB Thickness |
2oz copper, double-sided |
|
|
Roll Length |
5m / roll (10m / 20m customizable) |
|
|
Overall Height |
~1.5mm (without adhesive) |
|
|
Back Adhesive |
3M VHB 9448A / 300LSE |
|
|
Environment |
IP Rating |
IP20 (indoor, non-waterproof; IP65 silicone coating optional) |
|
Operating Temp. |
-20℃ to +45℃ |
|
|
Lifespan |
50,000+ hours |
|
|
Dimming |
Control |
0-100% PWM dimming, 0-10V, DALI, TRIAC (with compatible driver) |
|
Flicker |
Flicker-free with constant-voltage quality driver |
|
|
Application |
Art gallery, retail display, photography, cabinet, cove, shelf, bedroom, living room, office, hotel, corridor, under-cabinet |
