DC24V at 10W/m keeps current low and runs stable over long lengths; 2700K–6500K white (or red/blue/green/amber on request) gives designers a flexible palette for ambient and brand lighting. The irregular silicone shape hides mounting clips and reads soft from any angle, while 50mm cut units make field installation easy. Dim it with a standard 24V PWM / 0-10V / Triac driver, or specify DMX/RGBW for dynamic installs. Small in size, big in glow—the decorative linear workhorse for architectural and commercial outdoor projects.
✨ Super COB, Zero Dots: 320 COB chips/m under irregular silicone = one smooth neon-like line, no LED hotspots, no dark gaps—looks finished with or without an aluminum profile.

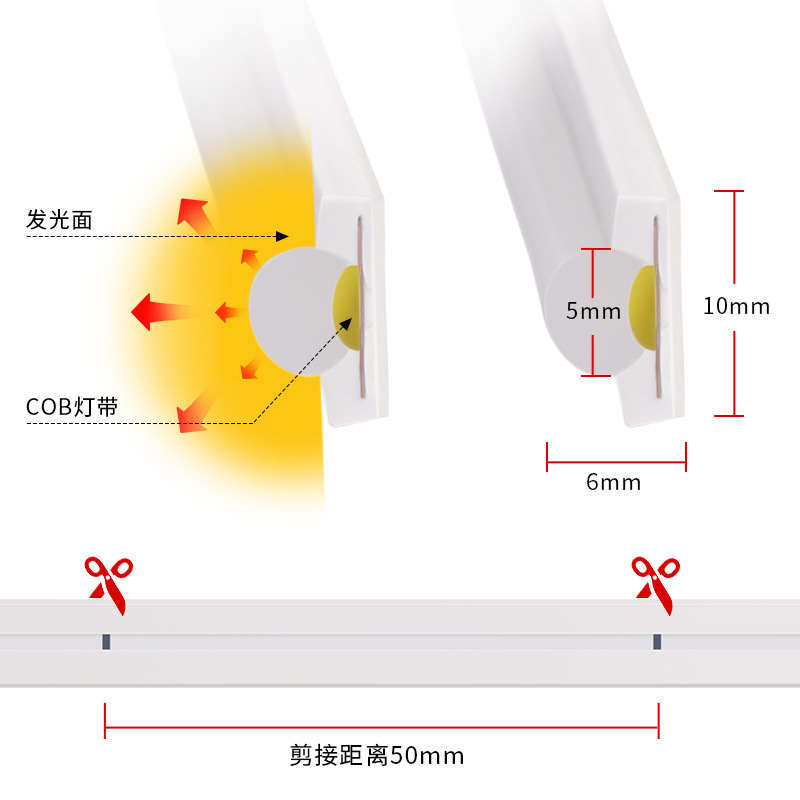

🦄 0610 Irregular Silicone Profile: 6×10mm custom cross-section bends around signs, arcs and furniture edges where standard 8mm/10mm strips look bulky.

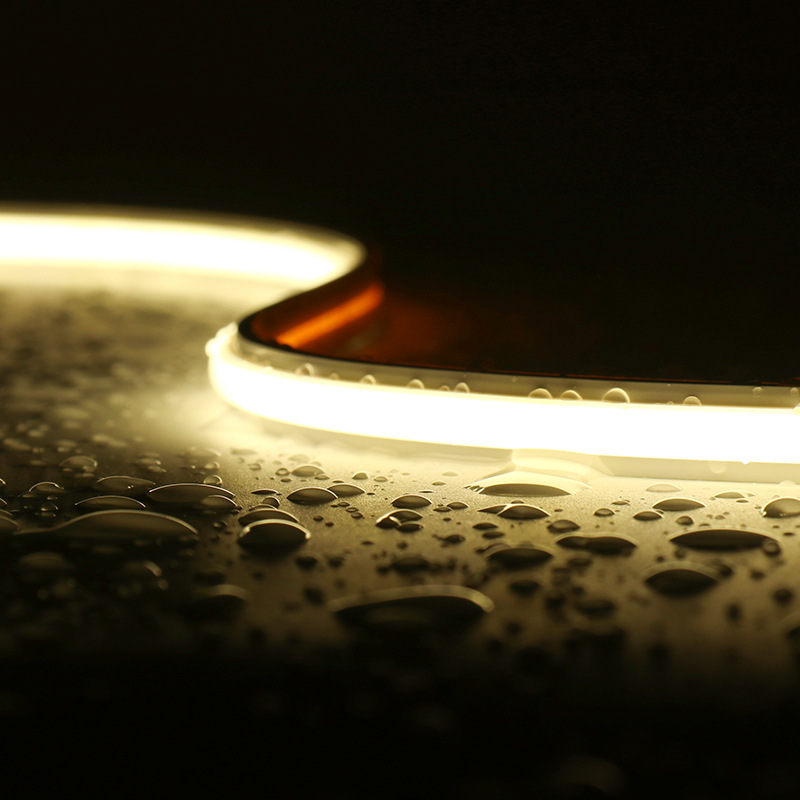

🌊 IP67 Outdoor Ready: One-piece silicone extrusion is dust-tight, rain-proof, UV-stable and anti-yellowing—built for facades, landscapes and commercial streets.
🔌 24V 10W/m Stable: Low-current CV input, less voltage drop, longer safe runs; pairs with any 2-wire 24V dimmable driver (non-addressable version).
🏷️ Decor + Branding Tool: Shopfronts, logo letters, balcony edges, garden steps, bar fronts, hotel eaves—static white or color, ambient glow or contour highlight.
Product Specification Sheet— 0610 Irregular Silicone Super COB Front-View LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
0610 Irregular Silicone Super COB Front-Emitting Strip |
|
Section |
6mm (W) × 10mm (H) silicone profile |
|
|
FPC Width |
8mm |
|
|
LED Tech |
COB (Chip-on-Board), front view |
|
|
Density |
320 LEDs/m |
|
|
Electrical |
Voltage |
DC 24V Constant Voltage |
|
Power |
10W/m (50W / 5m roll) |
|
|
Current |
~0.42A/m |
|
|
Optical |
Color |
2700K / 3000K / 4000K / 5000K / 6500K; Red/Blue/Green/Amber optional |
|
CRI |
Ra ≥90 (white); N/A for monochrome |
|
|
SDCM |
3-step (white) |
|
|
Lumen |
~800–1000 lm/m (white COB) |
|
|
Beam |

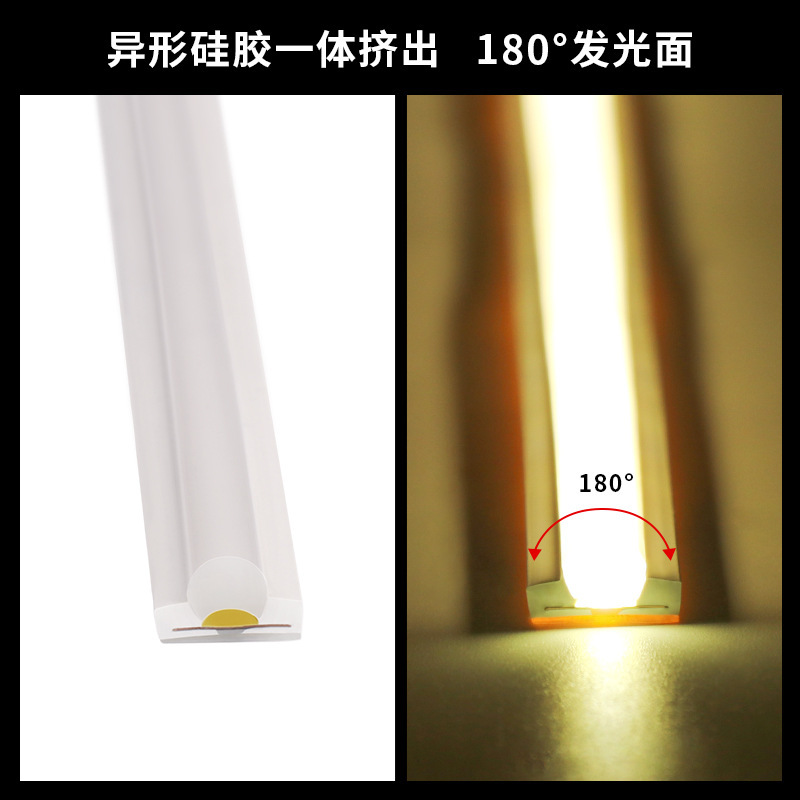

~120°–180° front diffuse glow |
|
|
Mechanical |
Extrusion |
Irregular solid/semi-solid silicone, one-piece |
|
Cut Unit |
50mm @ 24V |
|
|
Roll |
5m / 10m / 20m custom |
|
|
Bend |
Side/vertical bend depends on jacket design (confirm min radius) |
|
|
Control |
Dimming |
PWM / 0-10V / Triac (2-wire); RGB/DMX optional |
|
Environment |
IP |
IP67 |
|
Temp |
-20℃ ~ +50/60℃ |
|
|
Life |
30,000–50,000h |
|
|
Application |
Signage letters, shopfront contour, facade cornice, garden edge, balcony, bar/club decor, hotel eave, landscape pathway |
