The IP67 silicone-protected jacket resists rain, dust, UV and salt spray, making it ideal for facades, gardens, bridges, eaves, bars and signage. Use an RGBCCT controller to run chase, fade, music-sync, or static white scenes; pair with aluminum profiles for cleaner diffusion and better heat removal. Flexible and cuttable at marked intervals, it bends around curves without losing waterproof integrity at the factory-sealed sections. From vibrant event lighting to elegant evening warmth, one strip covers every outdoor mood.
🌈 5-in-1 RGBCCT: Red + Green + Blue + Warm White (2700K) + Cool White (6500K) in one chip—millions of colors plus high-quality tunable white from one tape.

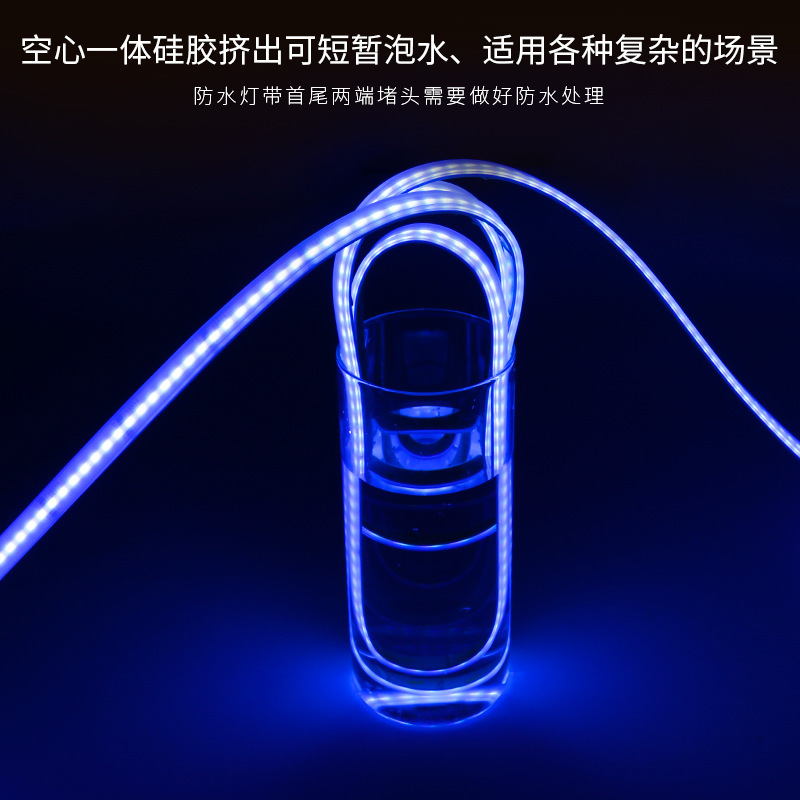

🌧️ IP67 Outdoor Ready: Silicone tube / potted jacket—dust-tight, rain-proof, UV-stable and coastal-rated for facades, patios, stair edges and landscape lines.
⚡ 24V 35W High Output: DC24V reduces current and voltage drop; 35W/m delivers strong brightness for large-scale outdoor accent and commercial signage.
✨ 630 LEDs/m Smooth Glow: High-density layout minimizes dotting; with a diffuser or aluminum channel it reads as a continuous neon-like line.
🎛️ Scene + White Control: Works with RGBCCT / SPI / smart controllers for chase, gradient, music sync, dimming, and warm-to-cool white tuning—decorative and functional in one.

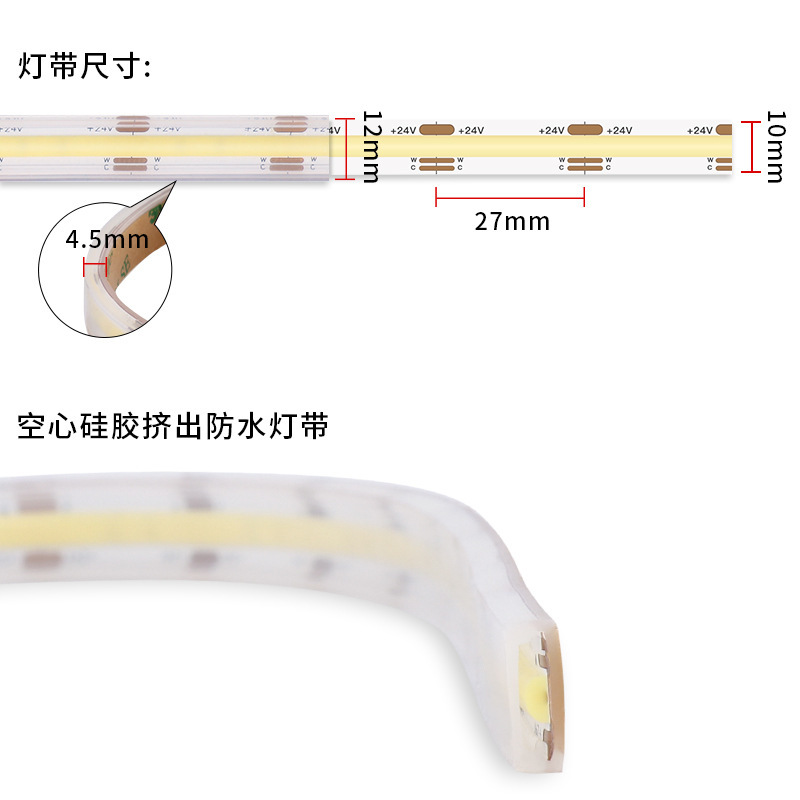

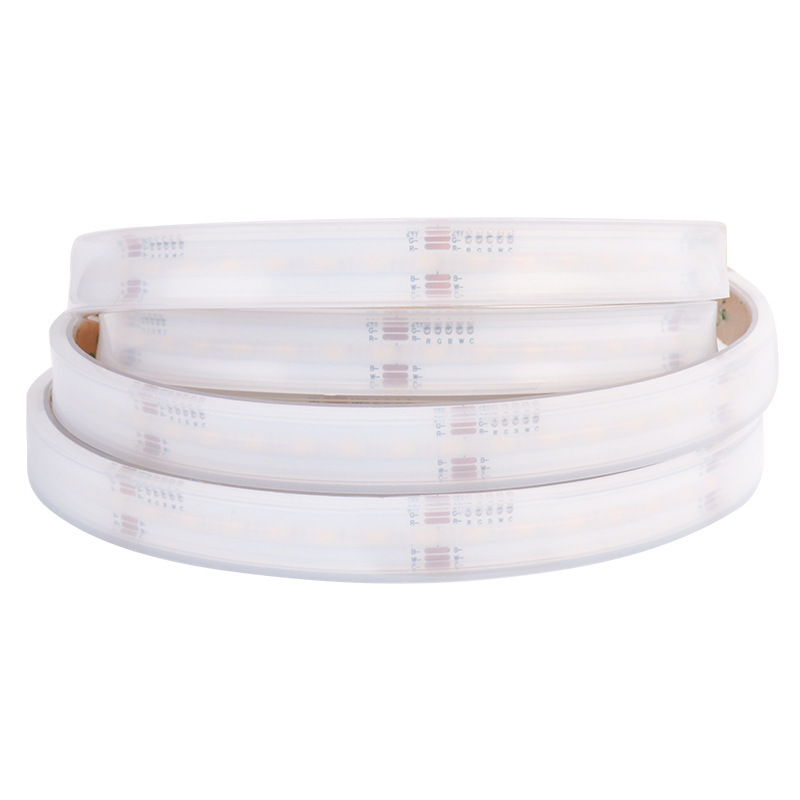

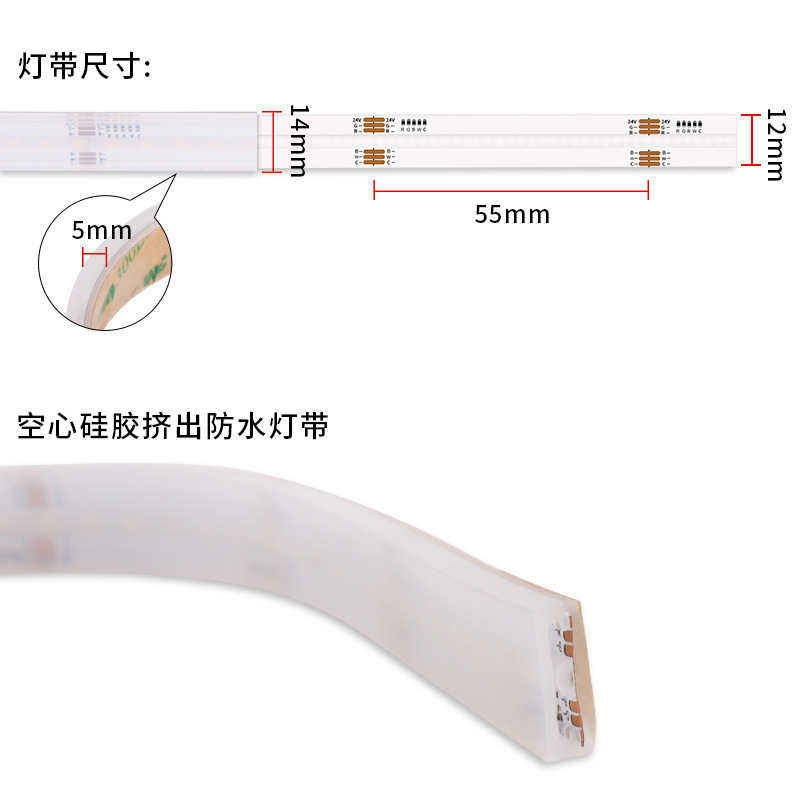

Product Specification Sheet— 12mm RGBCCT 5-in-1 IP67 LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
12mm RGBCCT 5-in-1 LED Strip (RGB + Warm White + Cool White) |
|
LED Type |
SMD 5050 5-in-1 / COB RGBCCT (confirm by sample) |
|
|
LED Density |
630 LEDs/m |
|
|
Electrical |
Input Voltage |
DC 24V |
|
Power |
35W/m (175W / 5m roll) |
|
|
Channels |
5 channels: R, G, B, WW(2700K), CW(6500K) |
|
|
Current |
~1.46A/m @ 24V |
|
|
Control |
Controller |
RGBCCT controller / SPI controller (addressable version) or 5-channel PWM (non-addressable version) |
|
Cutting |
Per manufacturer cut mark (typical 50–100mm class for 5-in-1 strips) |
|
|
Optical |
Color |
RGB full color + Tunable White 2700K–6500K |
|
CRI |
Ra ≥80 (white channels; Ra ≥90 optional) |
|
|
Beam Angle |
120° (SMD) / 180° (COB) |
|
|
Effect |
Static color, fade, chase, breathing, music sync, white dimming |
|
|
Physical |
PCB Width |
12mm |
|
Jacket |
IP67 silicone tube / encapsulated sleeve |
|
|
Roll |
5m / roll (custom length available) |
|
|
Mount |
3M backing + clips / aluminum profile |
|
|
Waterproof |
IP Rating |
IP67 (outdoor rain, dust, temporary immersion ≤1m) |
|
UV / Yellowing |
Outdoor-grade silicone, anti-yellowing |
|
|
Environment |
Working Temp. |
-20℃ ~ +60℃ |
|
Life |
30,000–50,000h |
|
|
Application |
Facade, bridge, eave, soffit, garden, patio, stair, bar, KTV, signage, landscape, retail exterior |
