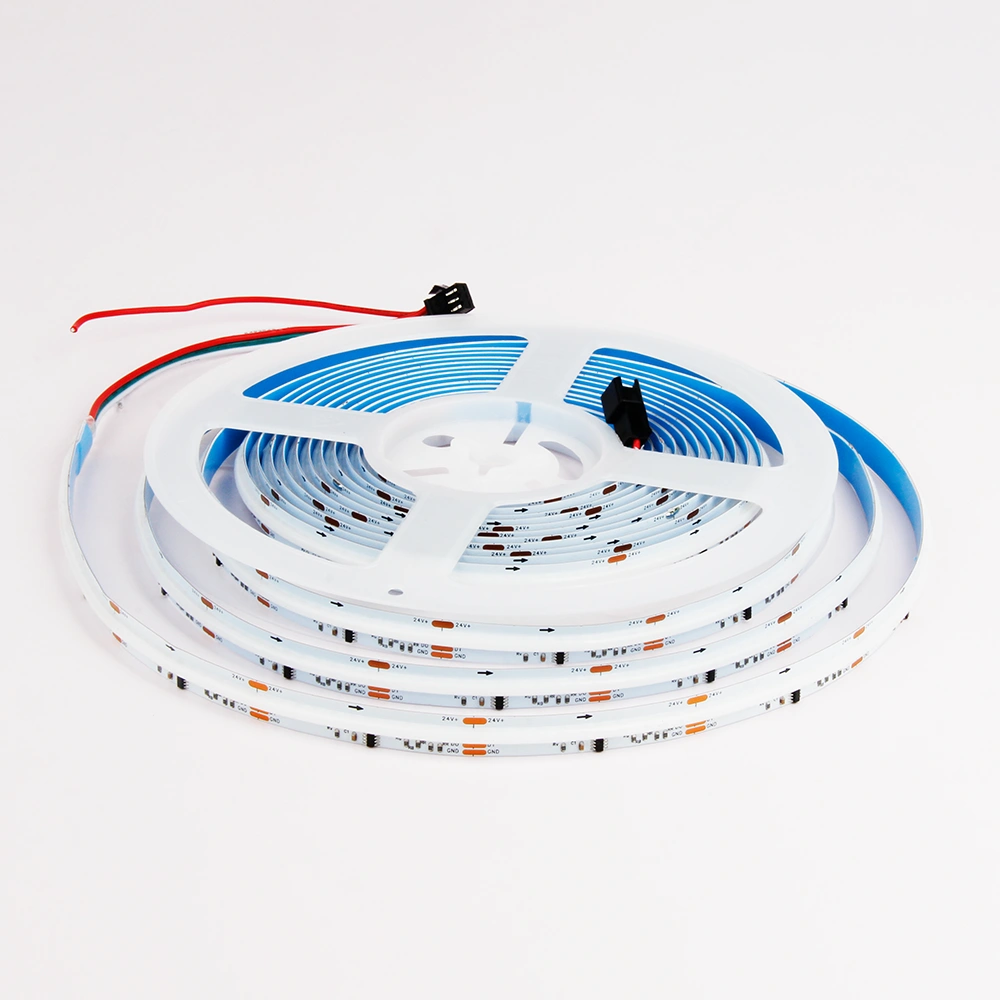

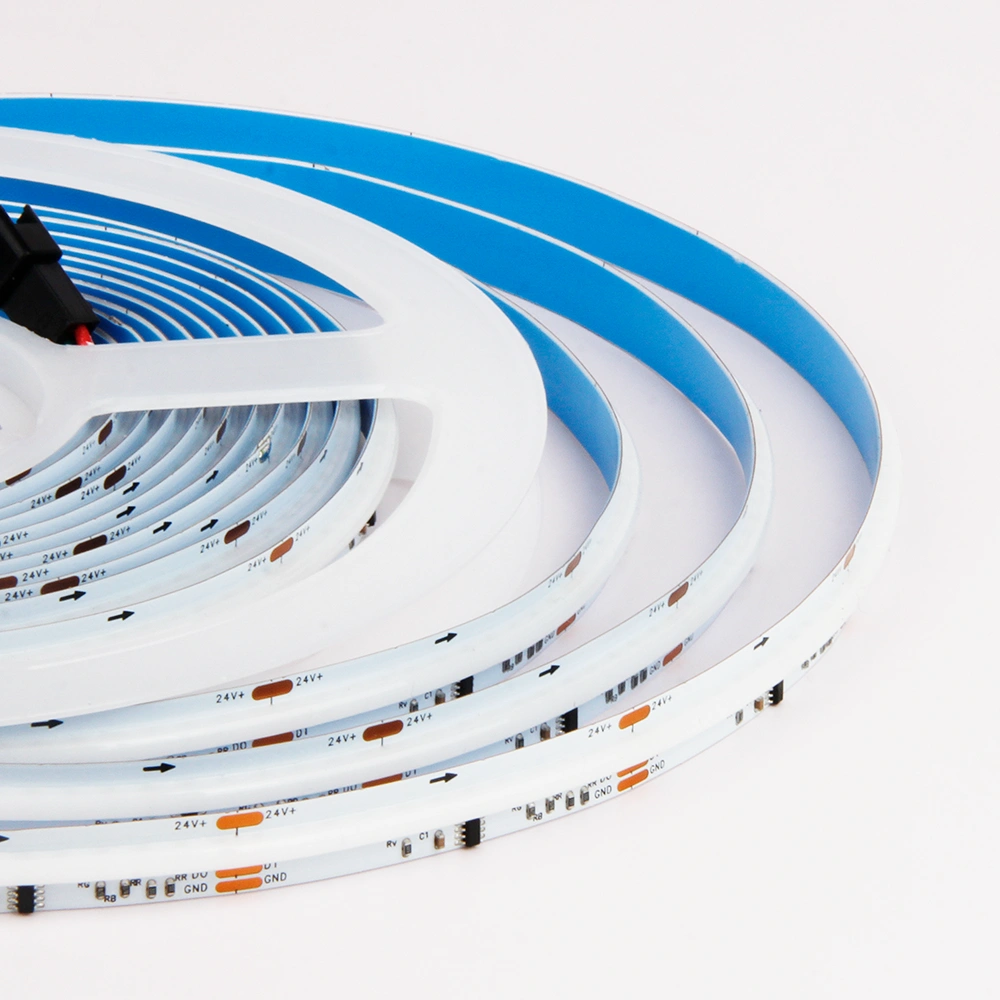

With 784 high-density chips per meter, the light is incredibly soft and uniform, perfect for under-cabinet, TV backlighting, or architectural coves. Compatible with SPI controllers (like WS2814), it supports smart synchronization and music modes via apps like WLED. Rated IP20 for indoor use, it is flexible, cuttable, and easy to install. Upgrade your lighting to professional-grade ambiance with this high-density, versatile COB strip.
Dot-Free COB Technology: Features 784 high-density chips per meter, providing a smooth, continuous line of light without visible hotspots, mimicking a premium neon effect.
20-Segment Addressable Magic: Supports independent control of 20 segments per meter, enabling dynamic chasing, flowing, and breathing effects for immersive visual experiences.
True RGBCW Full Spectrum: Combines RGB colors with dedicated Warm White (3000K) and Cool White (6500K) chips, allowing for both vibrant mood lighting and high-CRI task illumination.

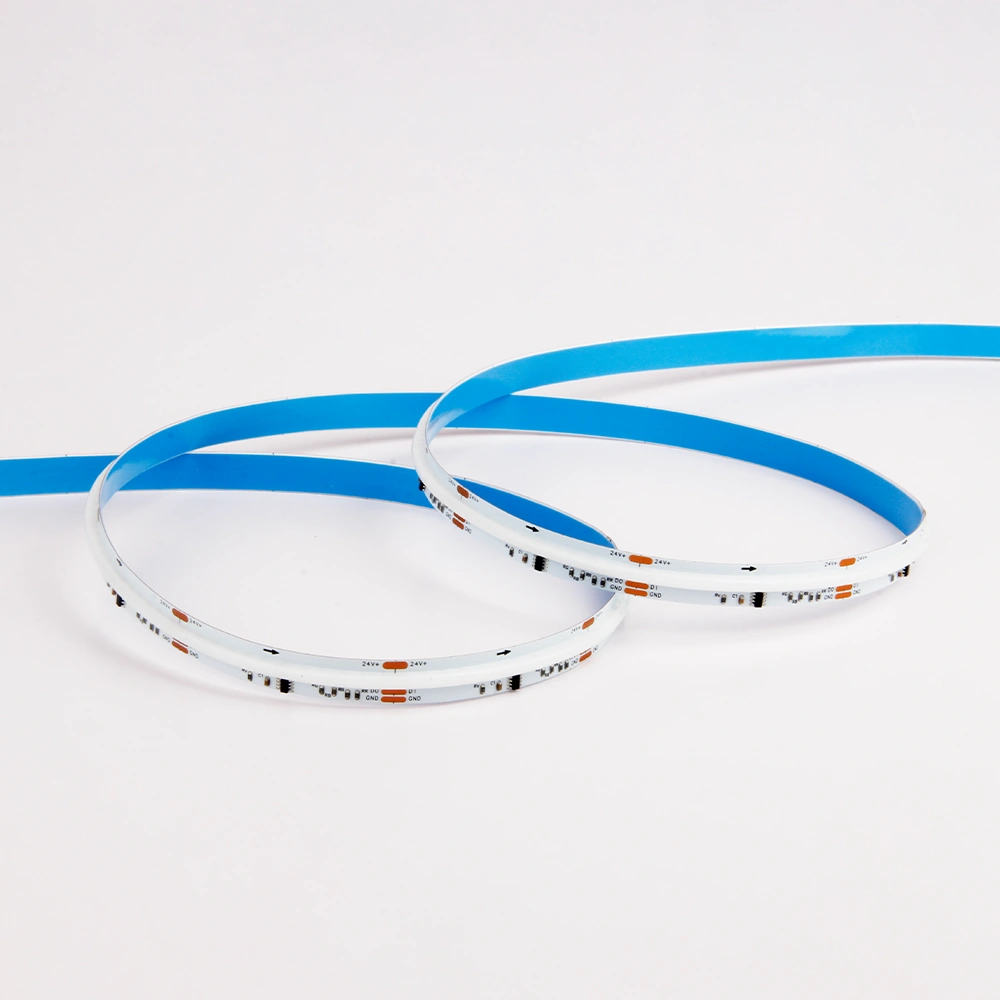

Flexible & Cuttable Design: The 10mm narrow PCB is highly flexible and can be cut at every 20th segment mark, making it ideal for custom lengths in tight spaces or curved surfaces.
SPI Smart Control Ready: Built-in WS2814 chips are compatible with mainstream SPI controllers (Arduino, ESP32, K-1000C), supporting app control, music sync, and DMX512 integration.
|
Parameter |
Specification |
|---|---|
|
Product Name |
10mm 784LEDs/m RGBCW COB LED Strip |
|
LED Type |
COB (Chip on Board) |
|
LED Density |
784 LEDs/Meter |
|
Color Mode |
RGBCW (Red, Green, Blue, 3000K, 6500K) |
|
Input Voltage |
DC 24V |
|
Power Consumption |
20-21W/Meter |
|
IC Type |
WS2814 (SPI) |
|
Pixel/Segment |
20 Segments/Meter |
|
Cutting Length |
50mm / Segment |
|
PCB Width |
10mm (White/Black optional) |
|
CRI (Ra) |
>90 |
|
Beam Angle |
180° |
|
Waterproof Rating |
IP20 (Non-waterproof) / IP65/IP67 optional |
|
Length/Reel |
5 Meters (16.4ft) |
|
Lifespan |
50,000 Hours |
|
Warranty |
3 Years |
