Because it’s COB, the color line is continuous and soft even without an aluminum diffuser—premium look for patios, garden edges, shopfronts, bars, TV walls and display shelving. Cut every 50mm on the marked pads, mount with clips or 3M tape, and power from any 24V CV supply + 3-channel RGB controller. It’s the easy-install alternative to pixel tape: no IC addressing, no mapping, no controller firmware—just reliable, vivid, dot-free color for residential and commercial ambiance.

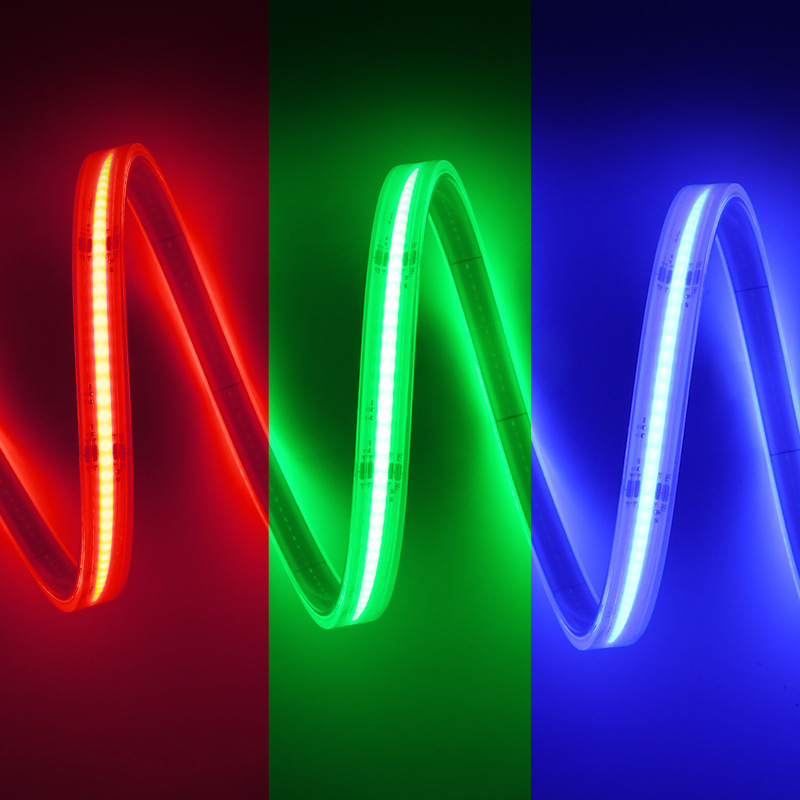

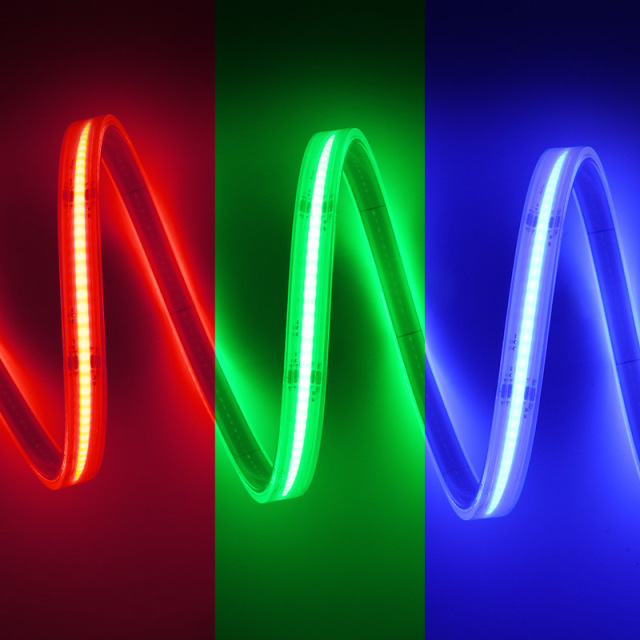

🌈 840/m COB = Dot-Free Rainbow: 280R+280G+280B chips/m under silicone gel → one continuous color line, no SMD dots, no dark gaps, even direct-view.

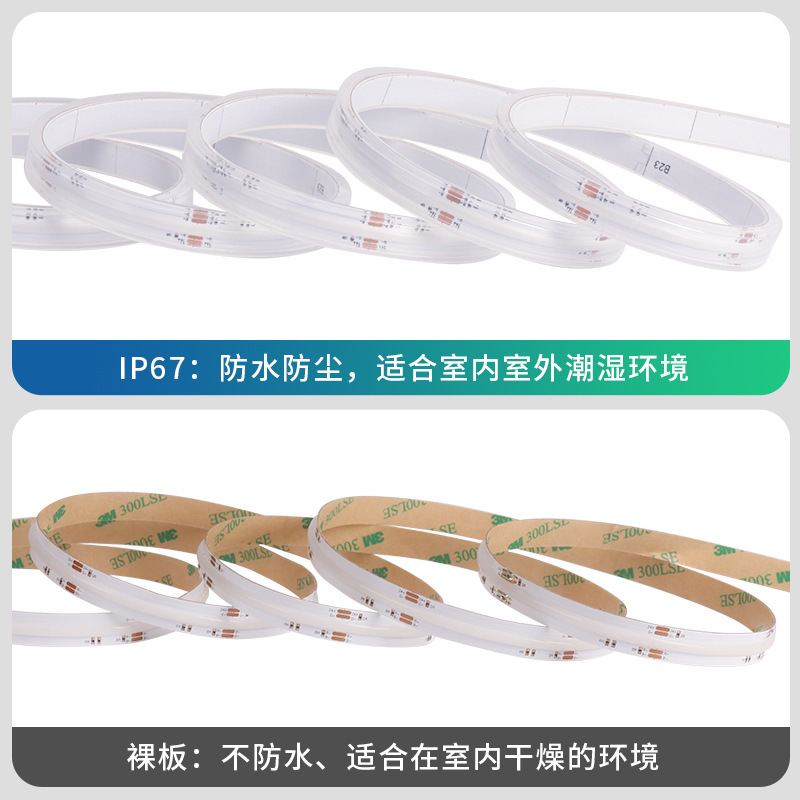

🌊 IP67 Silicone Extrusion: One-piece silicone tube/jacket resists rain, dust and UV—outdoor patio, eave, signage and landscape runs without extra diffuser box.
📱 Smart RGB Control: RF / WiFi / Bluetooth / App / voice; fade, flash, breathe, music-sync, schedule. Whole strip acts as one zone—simple for end users.
🔌 24V 15W/m Stable: Lower current than 12V RGB, less voltage drop on 5m rolls; 3-channel PWM RGB controller + 24V CV PSU is all you need.

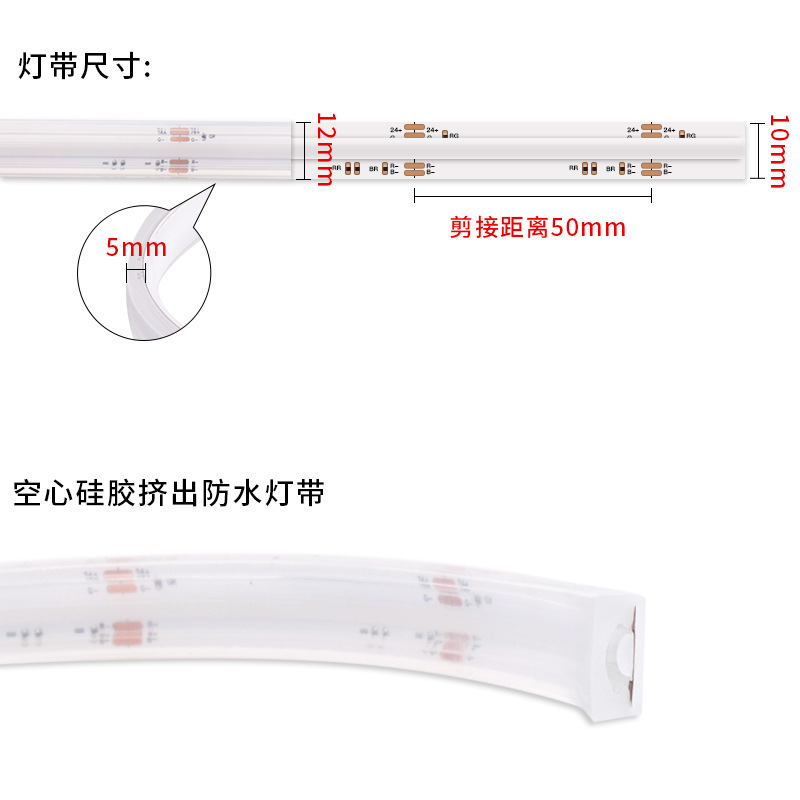

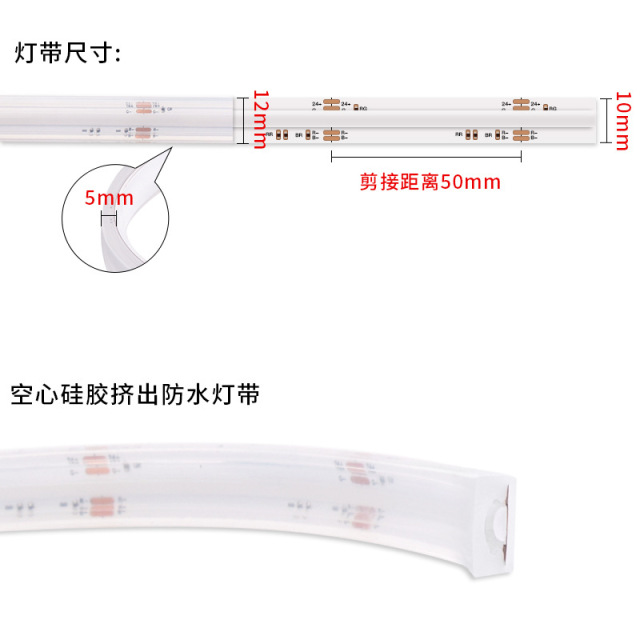

✂️ 10mm 50mm-Cut Friendly: Fits 12mm aluminum profiles; cut on marked pads every 50mm; indoor IP20 / outdoor IP65 / IP67 / IP68 options.
Product Specification Sheet— 10mm COB RGB Smart Strip (Non-Addressable)
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
10mm COB RGB Color-Changing Strip (whole-strip sync) |
|
LED Tech |
COB RGB (280R + 280G + 280B per m) |
|
|
Density |
840 LEDs/m |
|
|
Electrical |
Voltage |
DC 24V Constant Voltage |
|
Power |
15W/m (75W / 5m roll) |
|
|
Current |
~3.1A / 5m roll |
|
|
Optical |
Color |
RGB, 16M colors via controller |
|
CRI |
N/A for RGB (white-mix CRI optional on RGBW version) |
|
|
Lumen |
~550–1400 lm/m depending on bin/driver |
|
|
Beam |
180° |
|
|
Control |
Mode |
3-channel PWM RGB: RF / WiFi / BT / App / Alexa / Google Home |
|
Addressable? |
No — whole strip same effect (pixel/IC version sold separately) |
|
|
Wiring |
4-pin: 24V / R / G / B |
|
|
Mechanical |
PCB |
10mm wide, 2oz copper FPC |
|
Jacket |
Silicone extrusion / silicone tube |
|
|
Cut Unit |
50mm @ 24V |
|
|
Roll |
5m standard |
|
|
Environment |
IP |
IP20 / IP65 / IP67 / IP68 optional |
|
Temp |
-20℃ ~ +45/60℃ |
|
|
Life |
30,000–50,000h |
|
|
Application |
Patio, garden edge, balcony, shopfront, bar, club, cove, TV wall, shelf, signage backlight, landscape decor |
