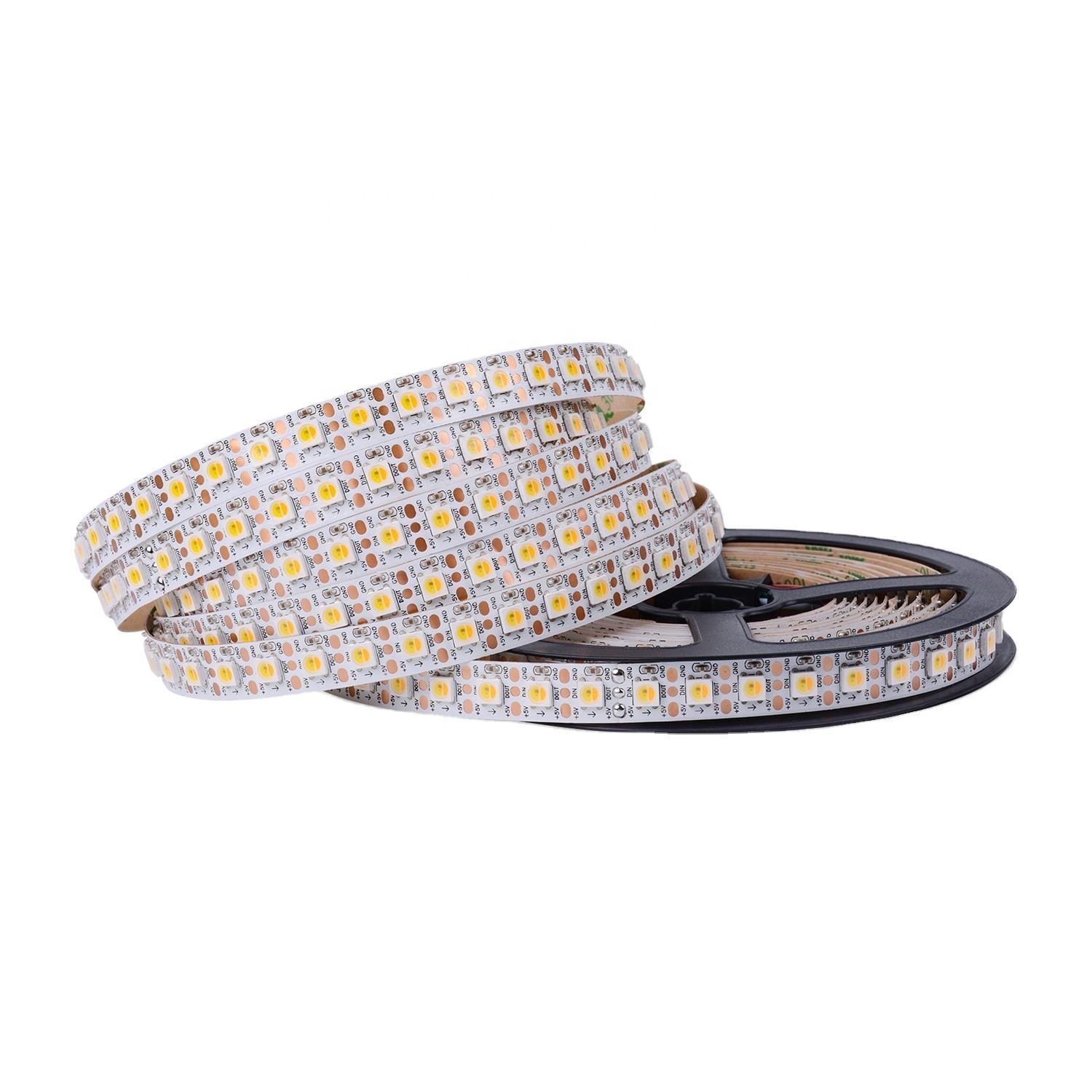

Each LED integrates a WS2812B smart IC for precise pixel-level control, enabling dynamic effects from soft sunrise fades to dramatic chase patterns via Arduino, ESP32 (WLED), or SPI controllers. Rated at 5V for safety and compatibility with USB-PD and portable power, it balances high brightness with energy efficiency. The flexible design allows cutting every single LED (6.94mm) and easy installation on curved or narrow surfaces. For best results, use parallel power injection on runs over 1 meter to maintain uniform brightness. A refined alternative to RGB strips when your project demands elegant, warm, and programmable white light.
Ultra-High Density 144 LEDs/m – Delivers perfectly continuous, hotspot-free warm white and amber linear light on a slim 12mm FPCB; cuttable every single LED (6.94mm) for precision fits.
Individually Addressable WWA Pixels – Each LED features a built-in WS2812B IC for independent control, enabling gradients, chases, breathing, and sunrise/sunset effects via Arduino, ESP32 (WLED), Raspberry Pi, and more.
Elegant Warm White & Amber Output – Programmable WWA (Warm White + Amber) color mixing creates a cozy, premium atmosphere—ideal for cove, under-cabinet, retail, and architectural applications where RGB is unnecessary.
Safe 5V Operation & Wide Compatibility – Runs on 5V DC (USB-PD, power banks, or dedicated supplies); fully compatible with popular ecosystems like WLED, FastLED, and T-1000S controllers.
Flexible, Cuttable & Easy to Install – Bendable FPCB with strong 3M adhesive backing; supports parallel power injection for long runs to prevent voltage drop and ensure uniform brightness end-to-end.
|
Item |
Specification |
|---|---|
|
Product Type |
Addressable LED Strip Light |
|
LED Type |
WS2812B (Built-in IC, WWA) |
|
Color Configuration |
WWA (Warm White + Amber) |
|
LED Density |
144 LEDs/meter |
|
PCB Width |
12 mm |
|
Cutting Unit |
Every 1 LED (≈6.94 mm) |
|
Operating Voltage |
DC 5V |
|
Power Consumption |
~28.8–43.2 W/m (full white) |
|
Max Current |
~8.64 A/m (full brightness) |
|
Control Protocol |
Single-wire return-to-zero (WS2812B compatible) |
|
Gray Levels |
256 levels per channel |
|
Refresh Rate |
>400 Hz |
|
Beam Angle |
120° |
|
IP Rating Options |
IP20 (Non-waterproof) / IP65 / IP67 (on request) |
|
Adhesive |
3M VHB tape on back |
|
Operating Temp. |
-20°C to +60°C |
|
Recommended Controllers |
Arduino, ESP32/ESP8266 (WLED), Raspberry Pi, T-1000S, SP108E, K1000C |
|
Power Supply Note |
Use 5V dedicated PSU; parallel power injection required for runs >1m |
|
Applications |
Cove lighting, backlighting, signage, retail display, architectural accent, stage & event |
