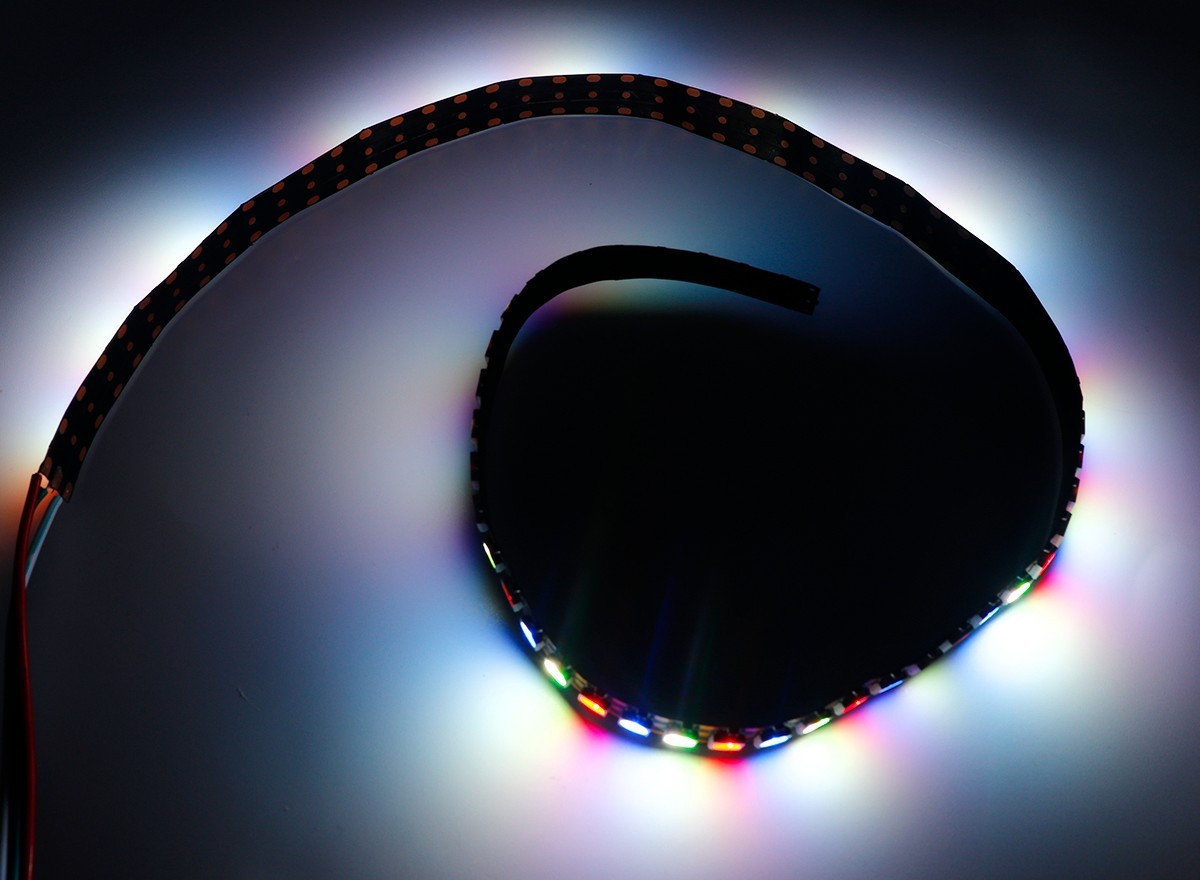

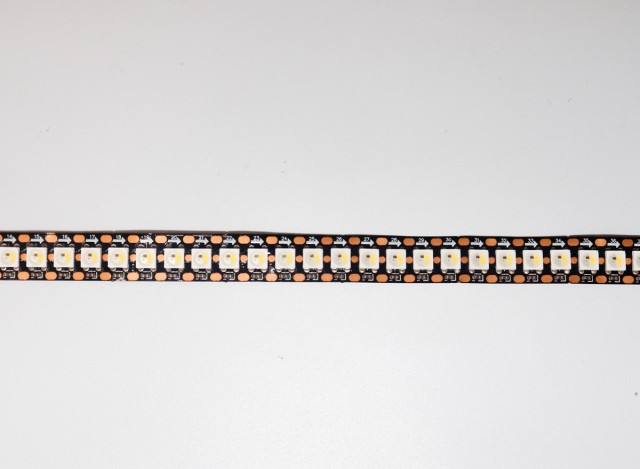

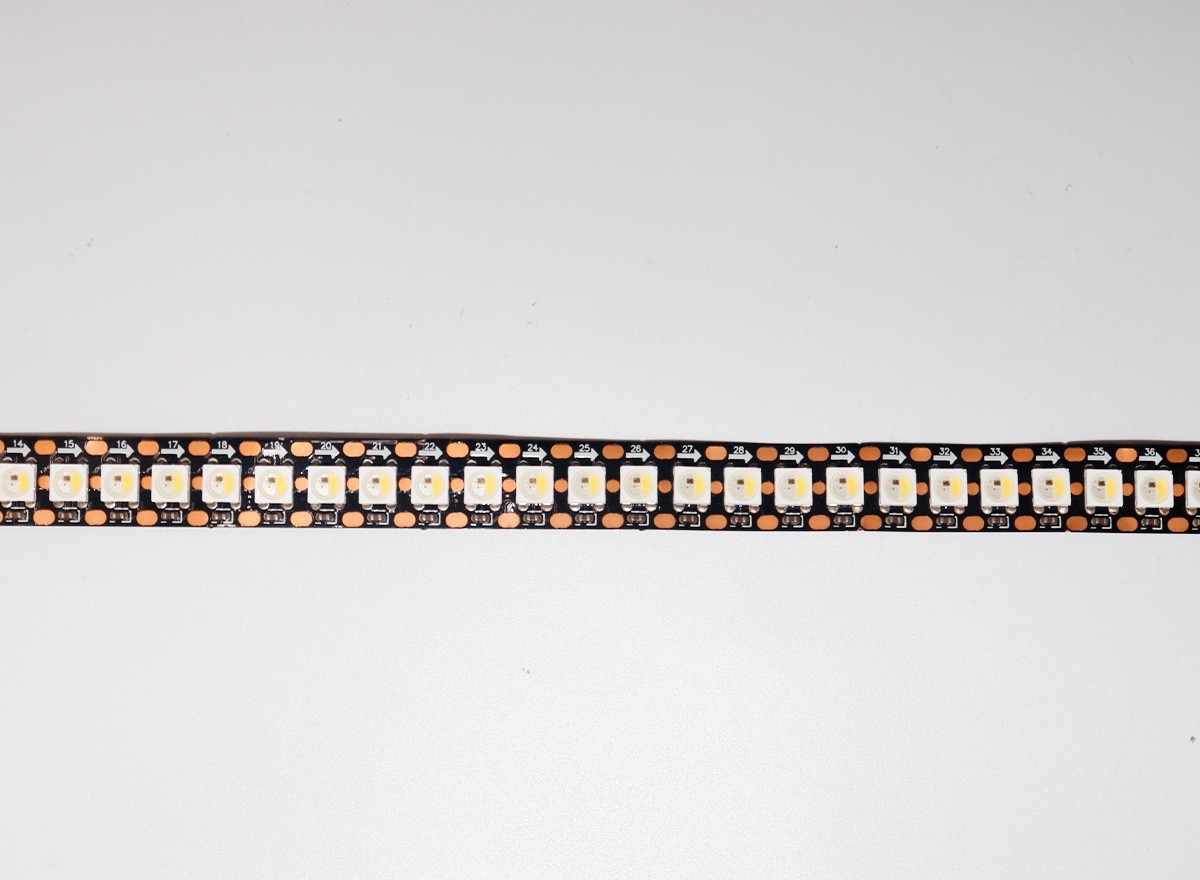

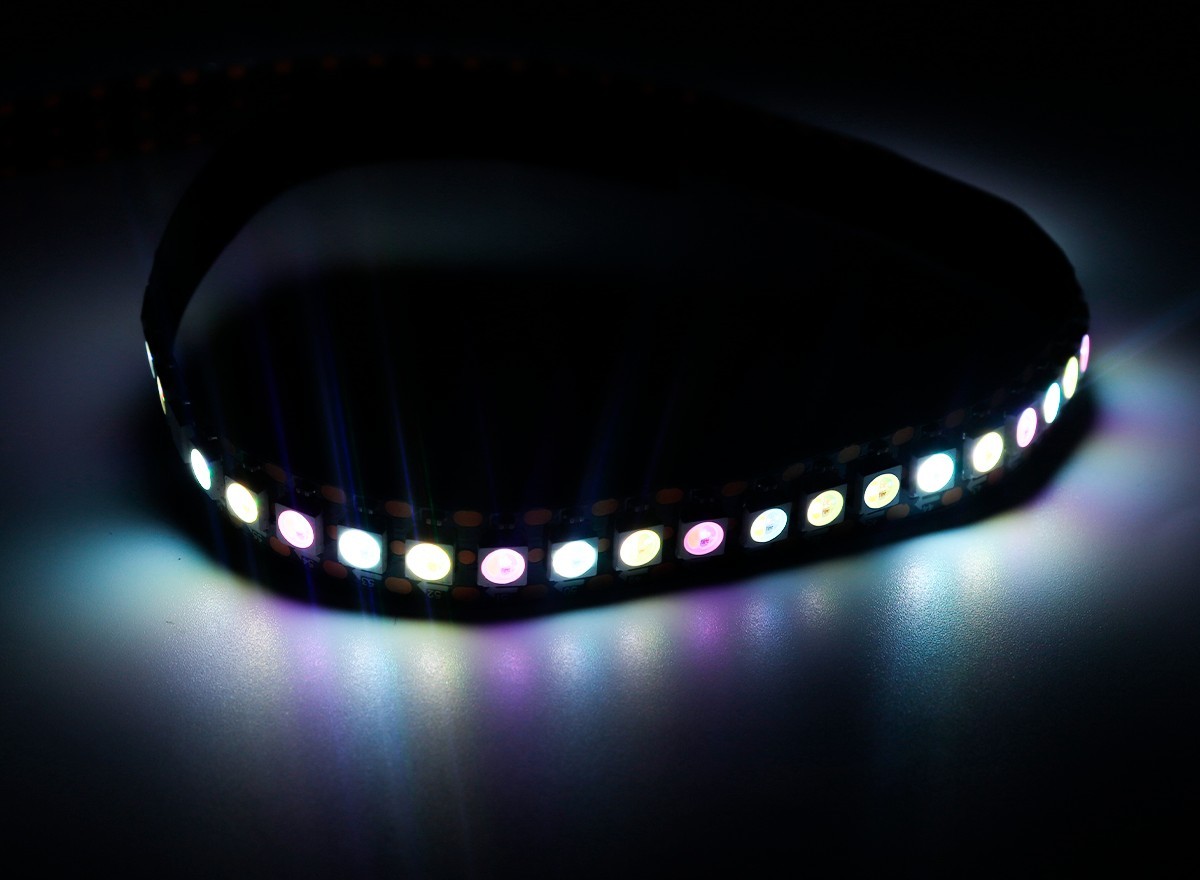

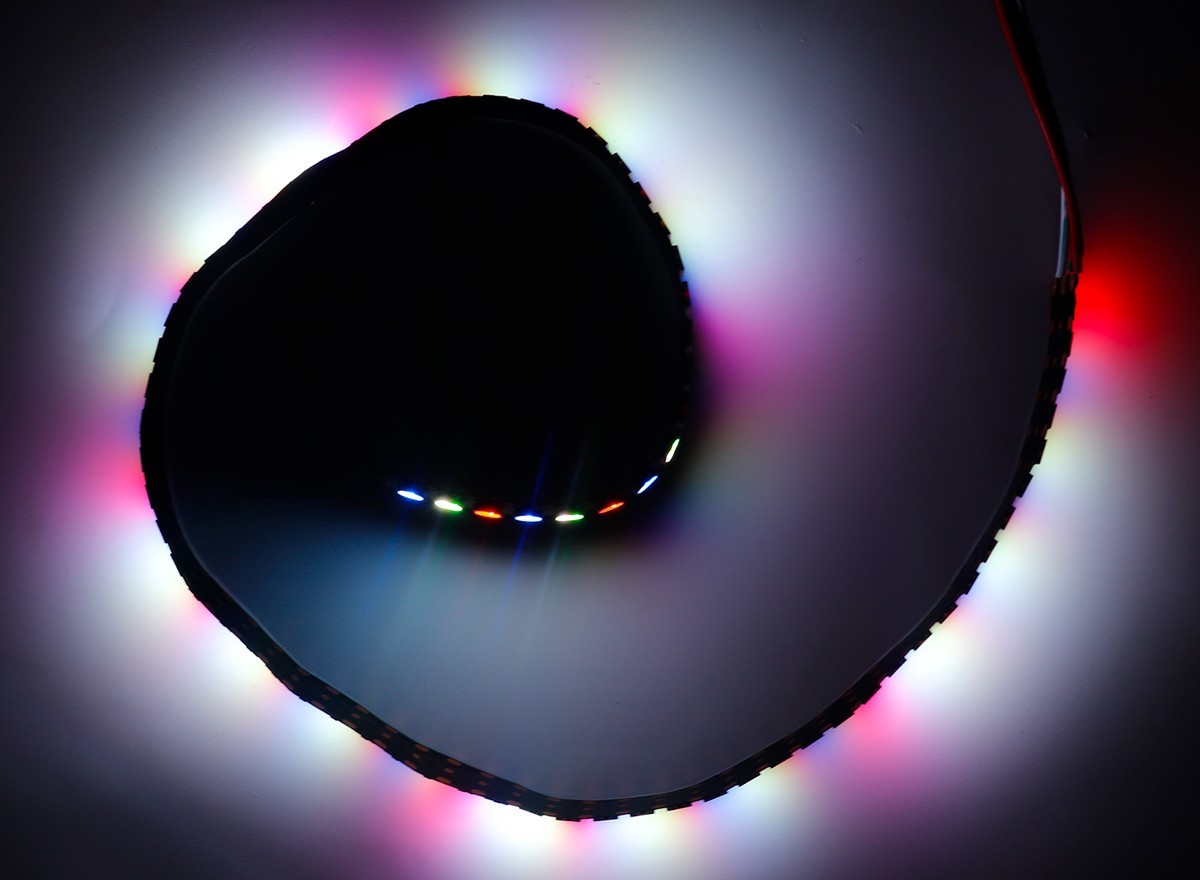

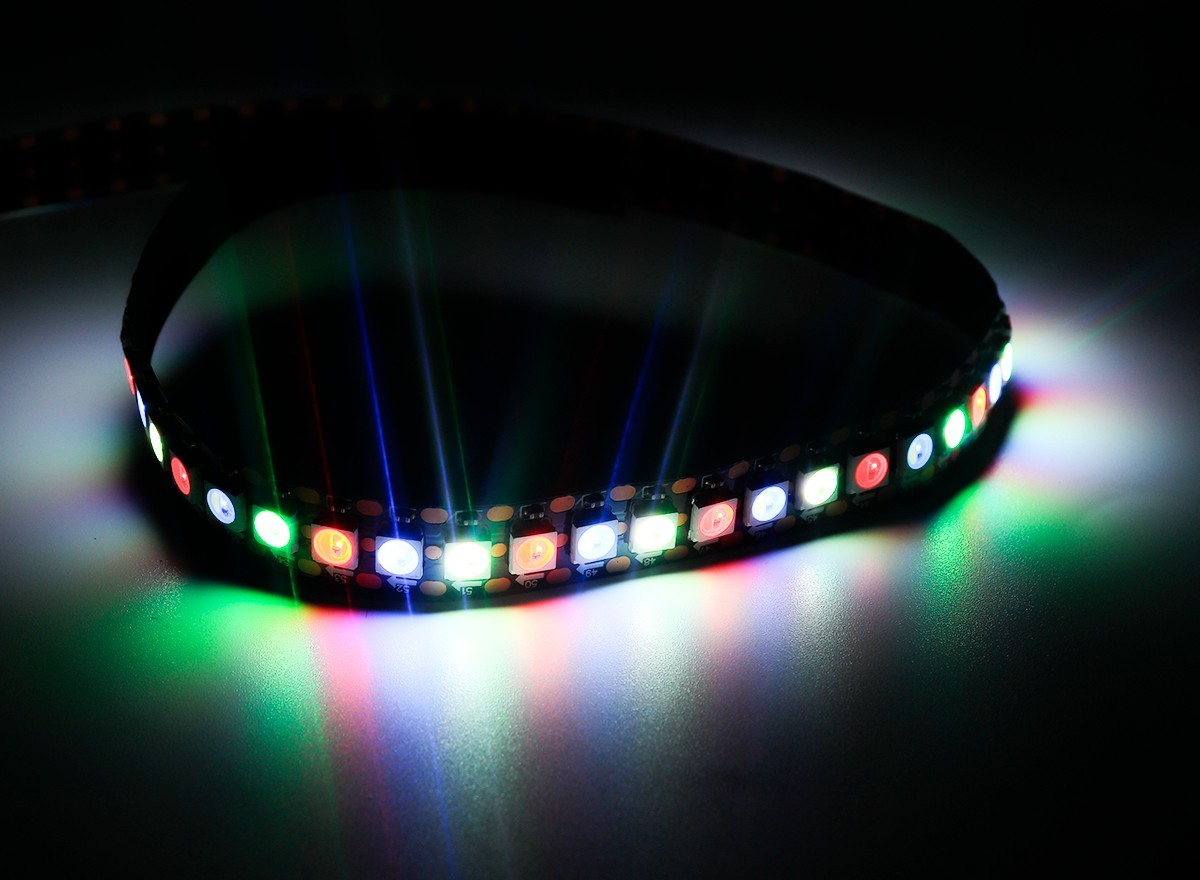

This SK6812 5050 RGBW strip packs 144 addressable pixels per meter at DC5V, giving ultra-smooth gradients and fine pixel detail. The dedicated white chip delivers clean warm/natural/cool white, while RGB channels create vivid dream-color effects. Each LED is individually controllable, cuttable every 6.94 mm, and compatible with Arduino, ESP32/WLED, K-1000C, Madrix and most WS2812/SK6812 controllers. Perfect for monitor backlights, gaming setups, retail displays, signage, stage props and DIY makers. High-density 5050 RGBW pixels mean richer color than standard RGB strips—just plan power injection on long runs because 5V draws more current.
144 Pixels/m High Density: 144 SK6812 5050 RGBW LEDs per meter, 6.94 mm cut pitch, great for smooth animation and fine text/pixel art.
True RGBW Color: Independent white die (2700K / 4000K / 6500K optional) for pure white plus full RGB dream-color effects.
Individually Addressable: 1 IC = 1 LED, 256-level grayscale, 32-bit color, chase/gradient/meteor/rainbow effects supported.
Maker-Friendly: Works with Arduino, Raspberry Pi, ESP32 + WLED, K-1000C, SP108E, Madrix; 3-pin 5V/DATA/GND wiring.
Flexible & Cuttable: 12 mm PCB, 3M adhesive back, IP20/IP65/IP67 optional, easy install on curves, shelves, PCs, signs and displays.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
IC Model |
SK6812 (built-in) |
|
LED / Pixel Density |
144 LEDs/m = 144 pixels/m |
|
Voltage |
DC 5V |
|
Power |
~43.2 W/m max (full white), ~28.8–36 W/m typical |
|
Cut Unit |
Every 1 LED / 6.94 mm |
|
PCB Width |
12 mm (10 mm optional) |
|
Color |
RGBW (WW 2700K / NW 4000K / CW 6500K optional) |
|
Grayscale |
256 levels per channel |
|
Signal |
Single-wire NZR, 800 kbps, WS2812-compatible |
|
View Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Wire |
5V / DIN / GND |
|
Controller |
Arduino, WLED/ESP32, K-1000C, SP108E, Madrix |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
No breakpoint resume; 5V needs power injection on long runs |
