Wide Device Compatibility
Through the intuitive PC programming software, you can take full control of a vast range of fixtures—including water ripple lights, beam lights, laser lights, LED floodlights, and tunable white (CCT) LEDs. It also supports complex pixel fixtures such as RGB, RGBW, and RGBWY, as well as specialty DMX devices like music fountains, DMX lifting balls, and DMX water features.
Massive Channel Capacity & Art-Net Output
The controller directly outputs 1,024 DMX channels (2 DMX ports) and can operate standalone to stream Art-Net (eDMX) signals. For larger installations, the channel capacity is upgradeable to 3,072 channels, greatly simplifying centralized control for long-distance lighting projects. With support for up to 2,000 scenes and 20 independent zones, the DINA-DR1-LITE easily meets the demands of most commercial and architectural lighting applications.
Professional Programming & Real-Time Preview
The companion software runs on Windows 10 and macOS, allowing you to create custom fixture libraries for maximum compatibility. You can program every single DMX channel with precision and preview the lighting effects in real time—what you see is exactly what you get. Once programming is complete, simply download the show to the controller with one click for fully standalone operation.
Flexible Standalone Control Options

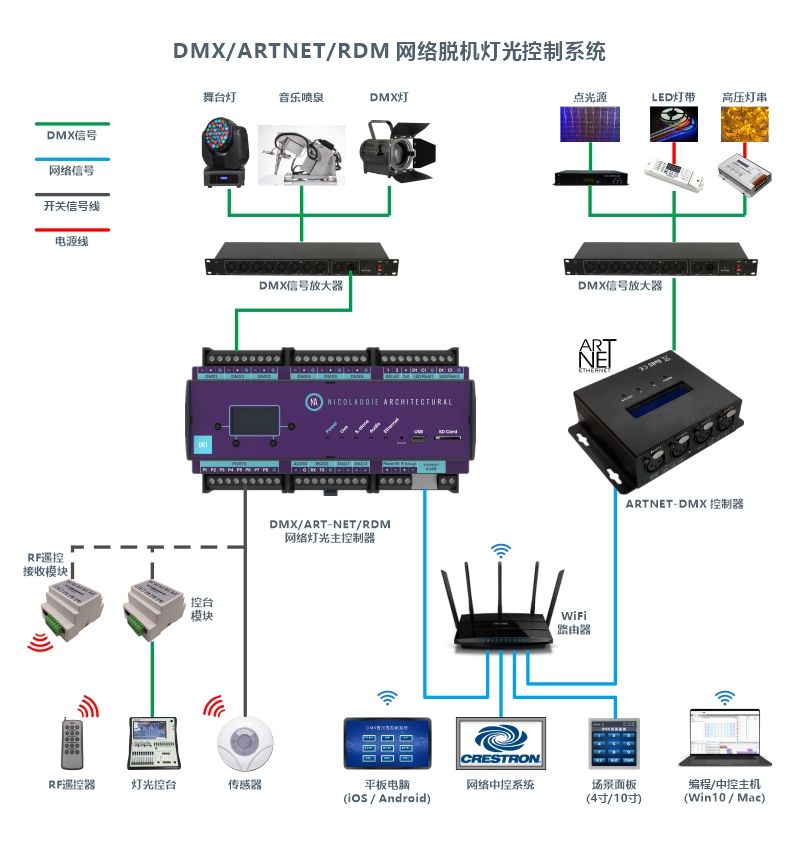

After downloading, the controller runs independently and can be triggered via multiple methods: UDP central control, WiFi APP (Android/iOS), dry-contact inputs, sensors, and scheduled timing. Additionally, with the built-in RDM management software, you can remotely configure and monitor your RDM-enabled fixtures directly from your computer.
|
Feature |
Detail |
|---|---|
|
DMX Output |
1,024 ch (direct), upgradeable to 3,072 ch |
|
Network Protocol |
Art-Net / eDMX (standalone streaming) |
|
Scenes / Zones |
2,000 scenes, 20 independent zones |
|
Programming |
Win10 / macOS software, custom fixture library, real-time preview |
|
Standalone Trigger |
UDP, WiFi APP, Dry-contact, Sensor, Schedule/Timer |
|
RDM Support |
Yes, remote configuration via software |
|
Power |
5V DC (USB-C) or 8–15V DC (Terminal) |
|
Installation |
35mm DIN Rail |
