12-Channel Control: Manage up to 12 independent channels with 255-level grayscale dimming for smooth, precise brightness adjustments.
Wide Voltage Compatibility: Supports AC 110-220V (Default 50Hz, customizable to 60Hz upon request), making it versatile for various regions.
CE Certified: Compliant with safety standards, ensuring reliable performance for smart lighting projects.
High Current Output: 5A per channel, suitable for demanding lighting setups.
Compact & Durable: Measures 200×80×35mm and weighs only 180g, fitting easily into standard installations.
This DMX512 high-voltage dimmer is perfect for:
Tungsten & Incandescent Lamps: Ideal for halogen, tungsten filament, and white incandescent bulbs.
Dimmable 220V LED Fixtures: Works great with many high-voltage dimmable LED lamps.
Note: Since LED bulbs vary widely in driver design, we highly recommend purchasing a sample first to test compatibility before bulk orders.
Smart Lighting Systems: Use as a digital silicon box / decoder driver to bring intelligent DMX512 control to your AC loads.

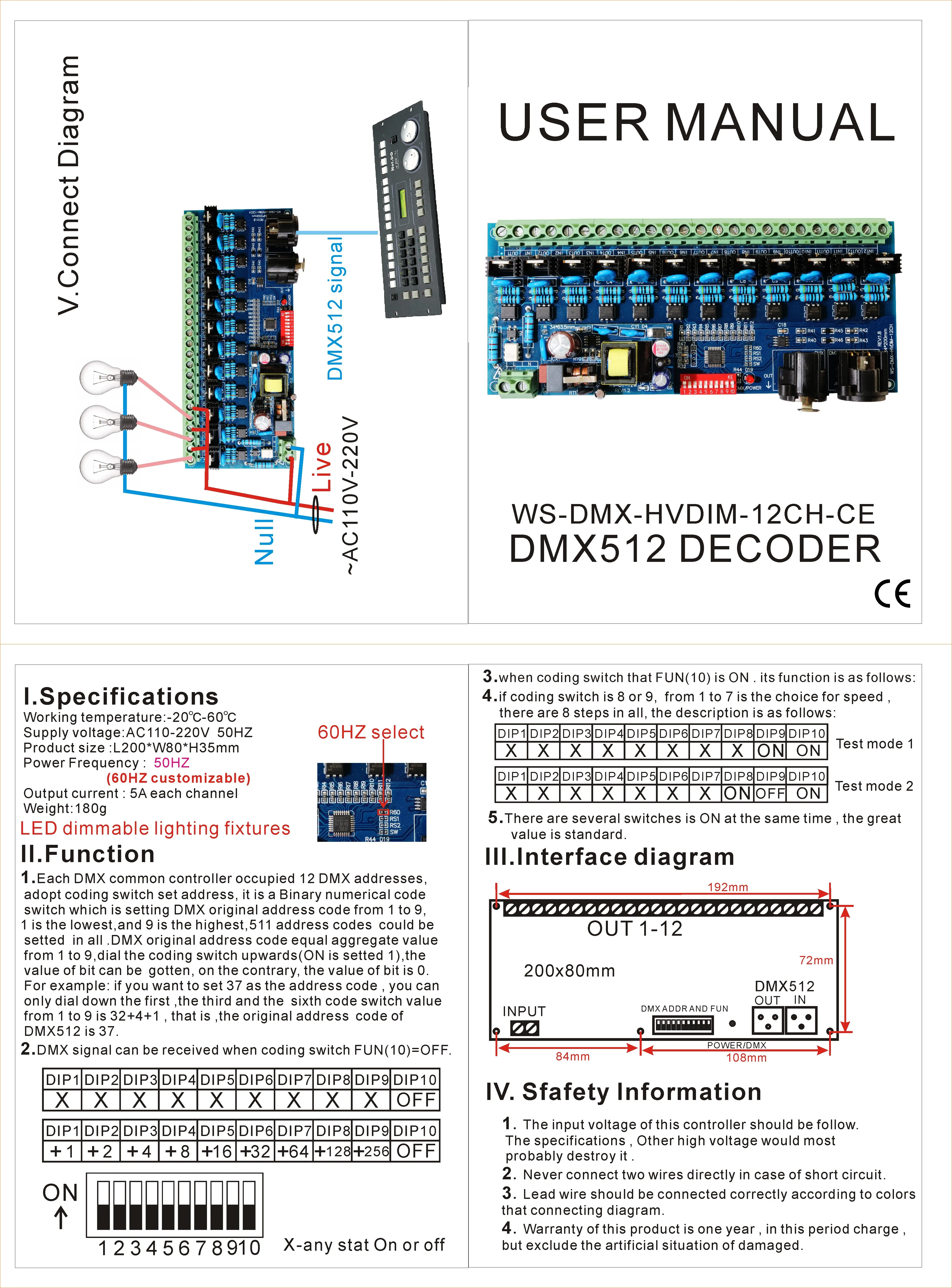

Equipped with a clear DIP switch interface, setting DMX addresses (1-511) is straightforward using binary code. The unit also features a test mode (DIP 8/9) for speed selection and standalone operation without a console. With DMX IN/OUT ports and clearly labeled terminal blocks, wiring your AC Live, Null, and lighting outputs is safe and efficient.
Offering excellent cost-performance, this 12-channel DMX512 dimmer delivers professional-grade functionality with easy setup. Whether you’re upgrading a stage lighting rig, architectural lighting, or home smart system, the WS-DMX-HVDIM-12CH-CE provides the reliability and precision you need.
Order Now & Customize Your Frequency!
Default shipping is 50Hz (CE certified). If you require 60Hz, please leave a message when ordering.
Upgrade your lighting control today with this high-quality, 255-grade dimming solution – perfect for tungsten, incandescent, and dimmable LED loads. Buy now and experience the difference!
