Unlike low-voltage LED controllers, this decoder is built specifically for AC 110-220V environments. It acts as a digital silicon box, allowing you to control up to six separate channels of incandescent or high-voltage dimmable loads using standard DMX512 protocols. Whether you're upgrading a theater rig or setting up a mood-lighting installation, this unit bridges the gap between digital consoles and traditional high-voltage bulbs.
Model: WS-DMX-HVDIM-6CH
Input Voltage: AC 110-220V (50Hz default, 60Hz customizable via jumper)
Channels: 6 independent outputs (OUT 1-6)
Current Capacity: 5A per channel (ensuring robust performance for most standard lamps)
DMX Address: Occupies 6 DMX addresses; set via DIP switches (1-9 binary coding, up to address 511)
Operating Temp: -20°C to 60°C
Dimensions: 122mm x 90mm x 25mm | Weight: 180g

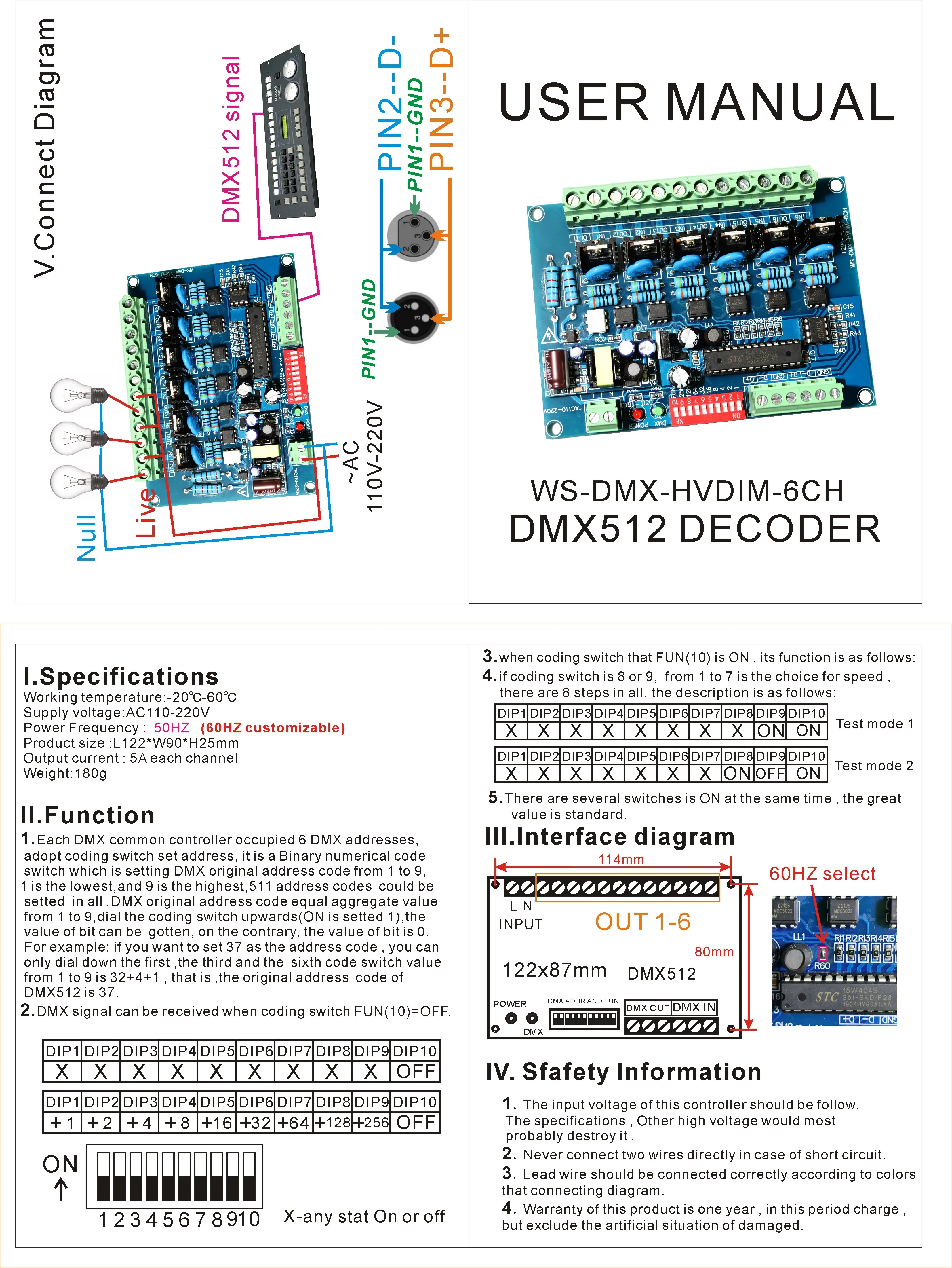

The manual provides a clear interface layout:
Power Input: L (Live) and N (Null) terminals for AC mains.
DMX Signal: Features both DMX IN and DMX OUT (XLR) for daisy-chaining multiple units. Pins are standard: Pin 1 (GND), Pin 2 (D-), Pin 3 (D+).
Load Output: Six terminals connect directly to your 220V bulbs.
Safety First:As noted in the manual, always follow the connection diagram to avoid short circuits. High voltage can destroy the unit if wired incorrectly, so ensure the L/N inputs match your local mains and never connect wires directly.
What sets this decoder apart is its flexible DIP switch system (DIP1-DIP10):
Standard DMX Mode: Keep FUN (DIP10) OFF. Use DIP1-DIP9 to set your binary start address (e.g., DIP1 + DIP3 + DIP6 = 1 + 4 + 32 = Address 37).
Special Functions: Sliding FUN (DIP10) ON unlocks specific modes. DIP8/DIP9 can trigger test modes, while DIP1-DIP7 adjust speed settings (8 steps total) for dynamic effects without a console.
60Hz Support: A dedicated jumper (R66) allows customization for 60Hz power frequencies, making it versatile for different regions.
The WS-DMX-HVDIM-6CH is a compact yet heavy-duty solution for anyone needing precise thyristor dimming in a DMX environment. With a one-year warranty and solid build quality (complete with heat dissipation considerations), it’s an excellent choice for turning standard 220V incandescent lights into intelligent, controllable fixtures.
